Porter 4" SQ Outdoor Ground Sleeve 00444000

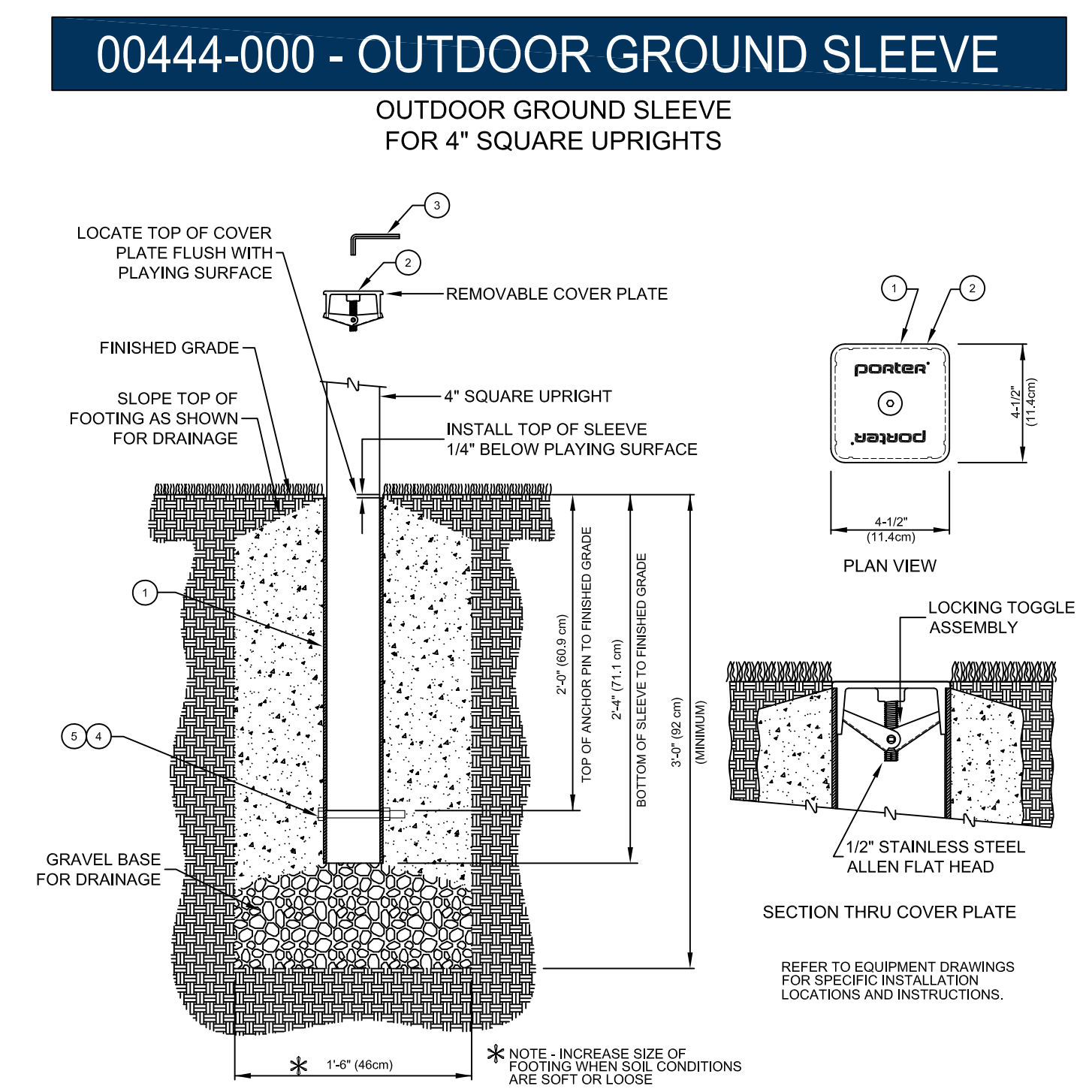

Porter 4" SQ Outdoor Ground Sleeve 00444000 • Anodized aluminum 4" x 4" sleeve • 2'-4" Length • Removable zinc cover plate • Sold individually Ground sleeve shall be designed for use on any outdoor product with a 4" (10.16cm) square support post. Sleeve shall be of a high-tensile (6063-TS) special aluminum extrusion, which is anodized for maximum corrosion resistance. Sleeve shall be 2'-4" (71.1cm) in total length with a 1/2" (1.27cm) diameter locating/anchor bolt located 2'-0" (60.9cm) below the playing surface. Bottom end of sleeve shall be open to allow drainage into gravel base beneath the concrete footing. Removable cover plate shall be of a solid zinc-type die-cast material, with a flat-head stainless steel locking bolt, for maximum corrosion resistance. Cover shall incorporate a special expansion-type toggle system to lock cover in place with a 5/16" (7.9mm) allen wrench provided with each unit. Sleeve shall be installed with top of removable cover plate flush with the playing surface.
