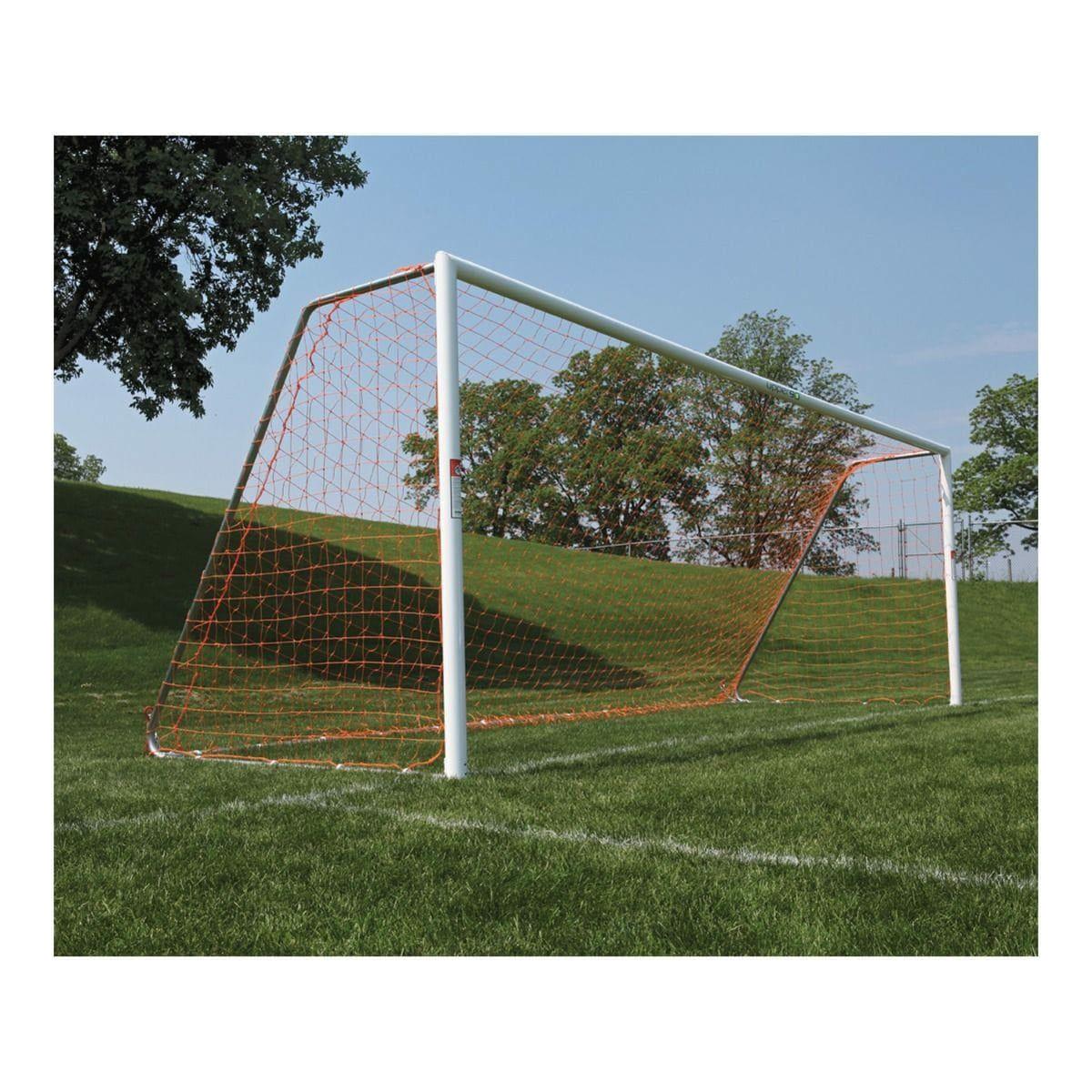

Gill UPPER 90 Championship Portable Soccer Goal (Pair)

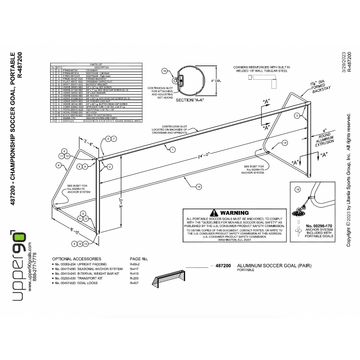

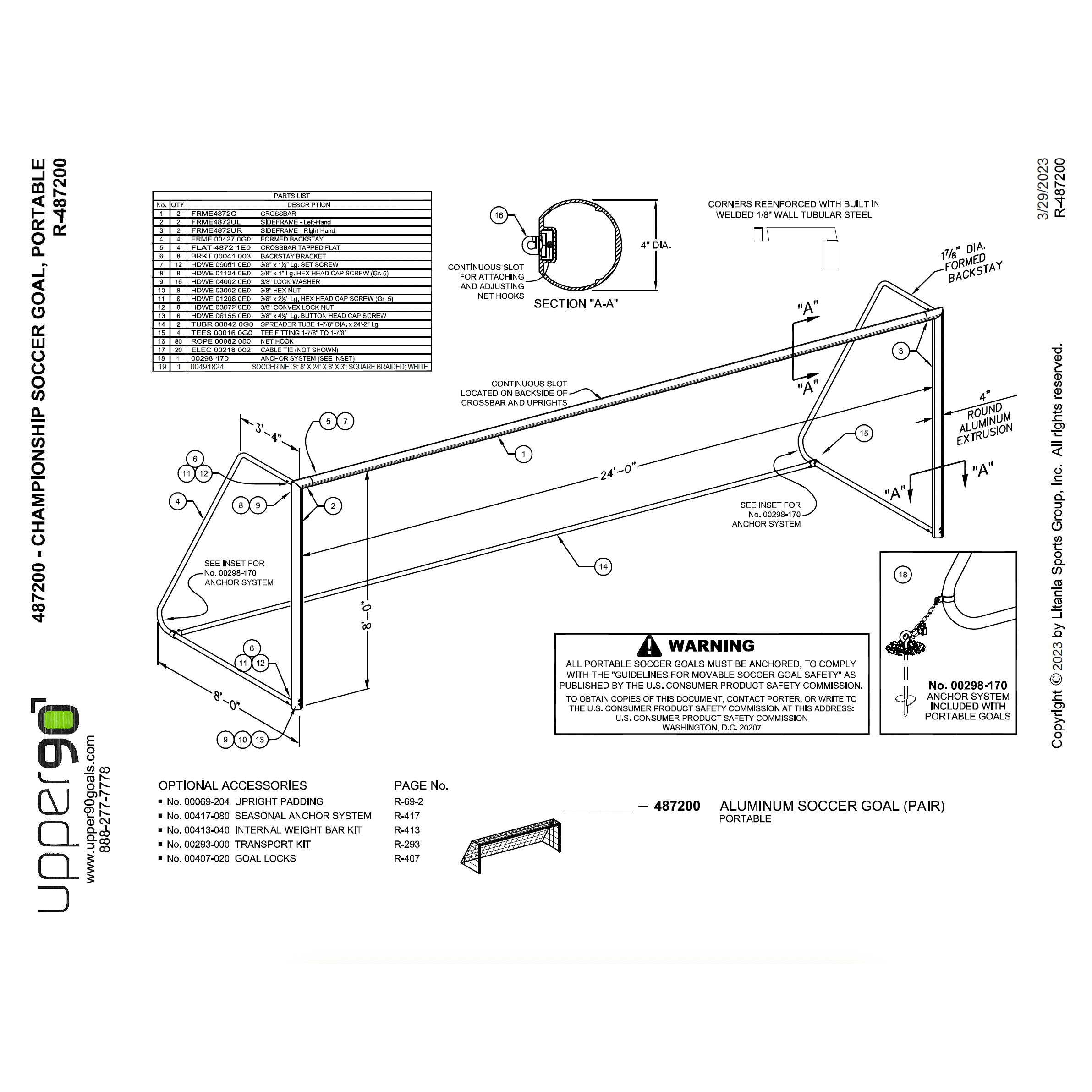

Gill UPPER 90 Championship Portable Soccer Goal (Pair) The package includes 8' x 24' Goals (pair), Nets (pair), Transport Kit (pair), Auger Anchor Kit, and Back Bar with Weights. The goal includes 8' x 24' Goals (pair), Auger Anchor Kit, and Rear Spreader Tube Kit. Soccer goals shall meet all NFHS, NCAA and FIFA requirements for championship soccer tournaments. The bottom edge of the horizontal crossbar shall be located 8'-0" above the playing field, with the uprights positioned with a 24'-0" inside dimension. Goals shall be furnished in six sections (crossbar, two uprights, two backstays, and rear spreader tube) for ease of assembly or dismantling for seasonal use. Crossbar and uprights are constructed of a 4" diameter lightweight high-tensile (6063-T6) aluminum extrusion finished in a durable white powder-coated finish. Backstays shall be fabricated from 1-7/8" O.D. galvanized steel tubing, and shall be secured to the uprights with steel brackets. All aluminum extrusion sections (crossbar and uprights) shall be designed with an internal continuous channel configuration, and furnished with special molded, high-tensile nylon no-tie net attachment clips for ease of installing or removing the nets. Upright corners shall be reinforced with built in welded 11 gauge tubular steel corner brackets. Uprights shall be secured to the crossbar with these welded steel corner brackets. Backstays shall be of a unitized design, one piece. Backstays shall extend 8'-0" behind the face of the goal. Backstay brackets shall be finished in a durable white powder-coated finish. Spreaders shall be 1-7/8" in diameter and shall be secured to soccer goal backstays with special tee fittings for maximum strength and stability. Spreader tubes and tee fittings shall be finished in a durable galvanized finish. Goals are furnished complete with an auger-type anchor system (set of four), to attach to the backstays and secure the soccer goals in position. Each anchor shall consist of an auger-type ground anchor, backstay clamp fitting, 12" long chain, and padlock. Auger ground anchor shall screw into grass-type playing fields to a 14" depth to provide excellent grip capabilities.  00345080 Instructions   00443058 Instructions   00446058 Instructions   00293000 Specifications   487200 Specifications
