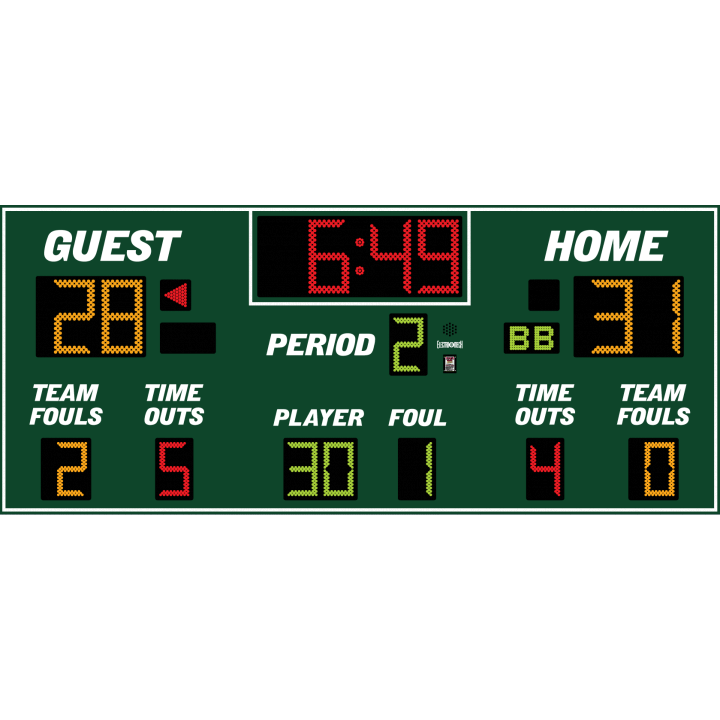

Electro-Mech LX2770 Pro Size Basketball Scoreboard
Not many gymnasiums need a scoreboard this big. But if your facility can handle it, we have it. At 14 ft. x 6 ft. this scoreboard makes quite an impression. The 12-inch tall digits for Period, Fouls, Time Outs, Player Number, and Player Foul are easily visible from over 500 feet away. And the LED digits for Points and Period Clock are 16 inches tall. Amazingly, this energy-efficient display draws less than 2 amps of current. Using Electro-Mech's eye-catching LED color scheme with Red, Amber, and Green displays, the LX2770 outshines and outsizes the competition.
•
Dimensions: 14 ft x 6 ft
•
Weight: 220 lb
•
Digit Height: 16 in, 12 in
•
Electrical: 120 VAC, 1.9 amps
Standard Equipment & Features
•
Single cabinet design with heavy-duty extruded aluminum framing
•
Lightweight, rust free, all-aluminum construction
•
Mounting hardware for permanent installation on posts without the need for on site fabrication
•
Automotive-grade baked on enamel based paint applied to the scoreboard face
•
Choice of 18 standard paint colors
•
Choice of amber or red LED displays
•
Internal horn
•
Full-sized 37-key control console with LCD display
•
Fifty programmable brightness levels
•
Junction box and patch cable for hardwired installations
•
Five-year limited warranty
•
Toll-free technical support via phone and online for the life of the product
•
The data output port on scoreboard cabinet supports daisy chaining additional displays
LX2770 Cutsheet Download
