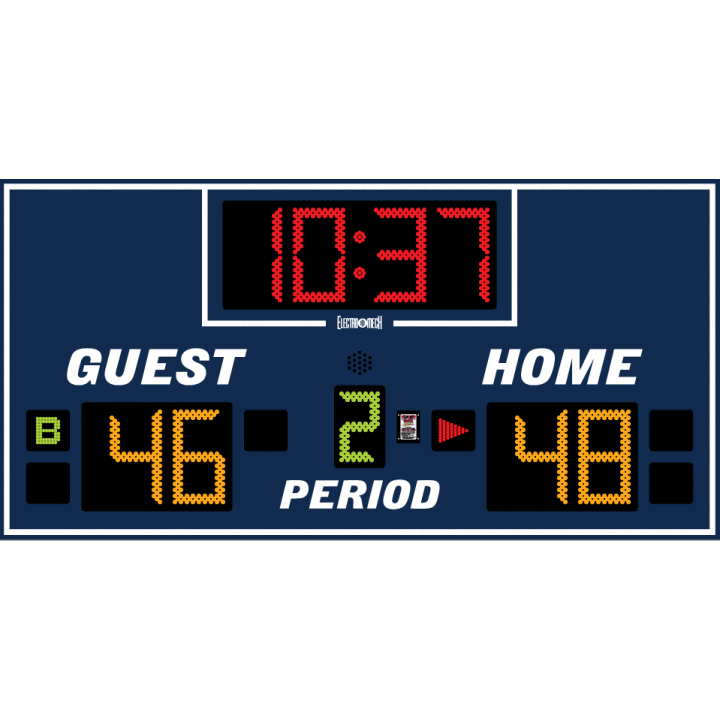

Electro-Mech LX2340 Basketball Scoreboard
Model LX2340 is a fairly recent addition to Electro-Mech's growing line of indoor Basketball scoreboards. It keeps the family tradition of using three different LED colors to provide visual distinction between different display areas on the scoreboard. Red is for the Period Clock. Amber is for the Points. Green is for the Period. The extra touch of Double Bonus indicators is a standard feature on this model. Possible upgrades include Electronic Team names, built-in ID panels, and wireless communication using our hugely successful and reliable ScoreLink system.
•
Dimensions: 8 ft x 4 ft
•
Weight: 90 lb
•
Digit Height: 12 in, 9 in
•
Electrical: 120 VAC, 1.2 amps
Standard Equipment & Features
•
Single cabinet design with heavy-duty extruded aluminum framing
•
Lightweight, rust free, all-aluminum construction
•
Mounting hardware for permanent installation on posts without the need for on site fabrication
•
Automotive-grade baked on enamel based paint applied to the scoreboard face
•
Choice of 18 standard paint colors
•
Choice of amber or red LED displays
•
Internal horn
•
Full-sized 37-key control console with LCD display
•
Fifty programmable brightness levels
•
Junction box and patch cable for hardwired installations
•
Five-year limited warranty
•
Toll-free technical support via phone and online for the life of the product
•
The data output port on scoreboard cabinet supports daisy chaining additional displays
LX2340 Cutsheet Download
