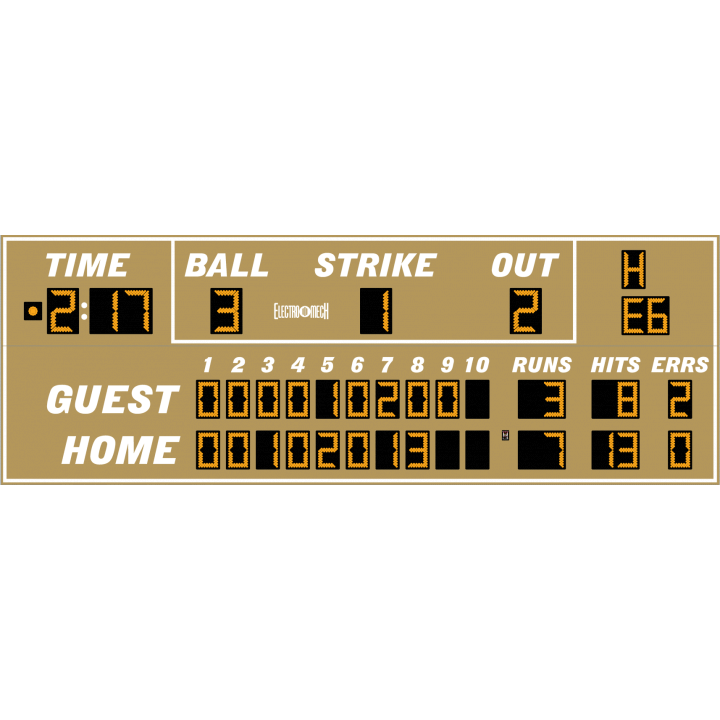

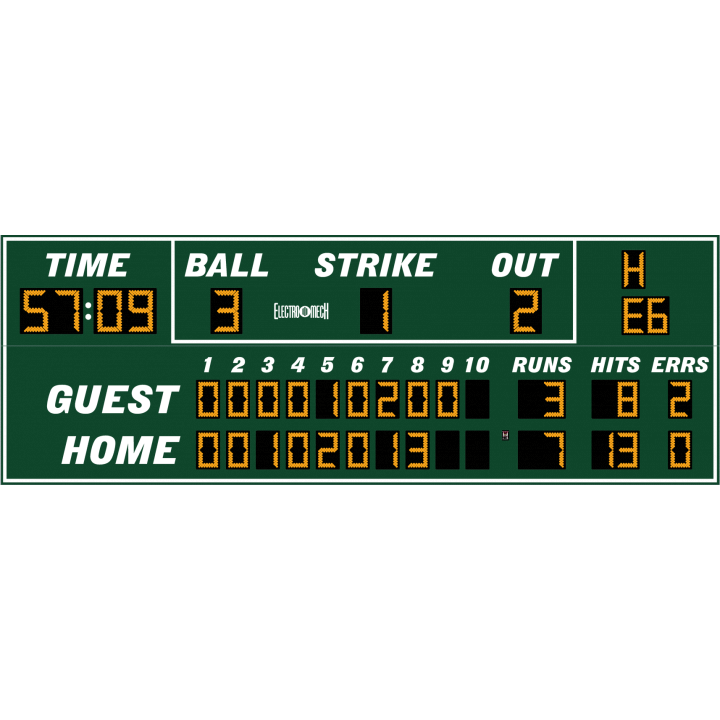

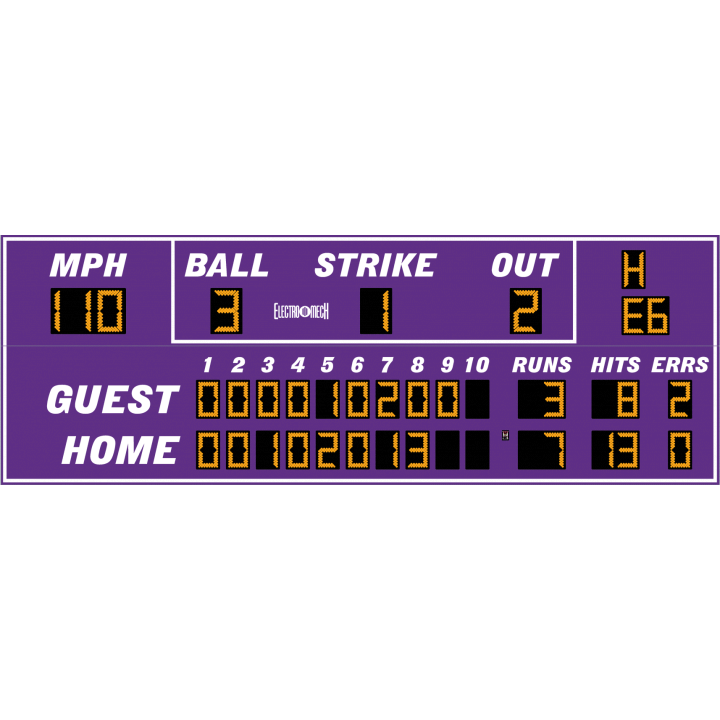

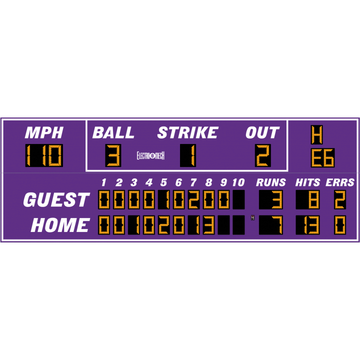

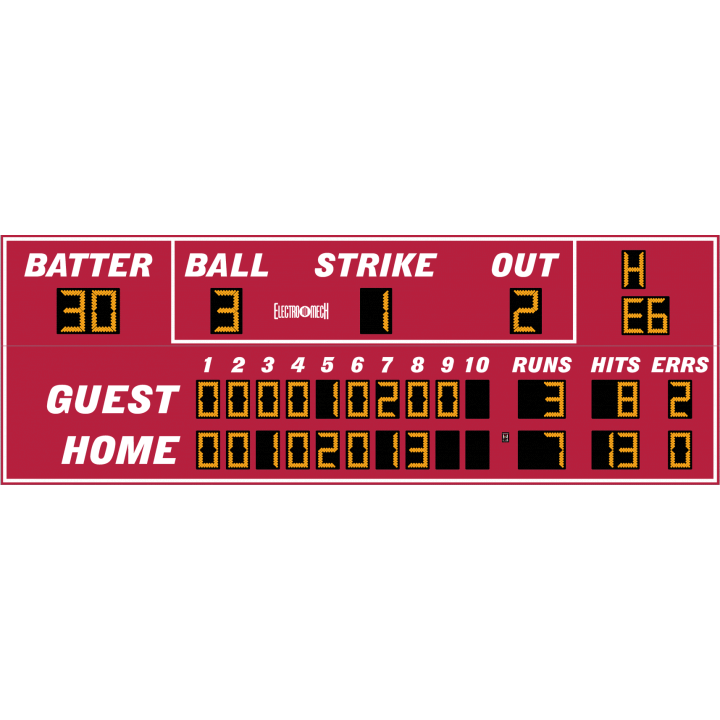

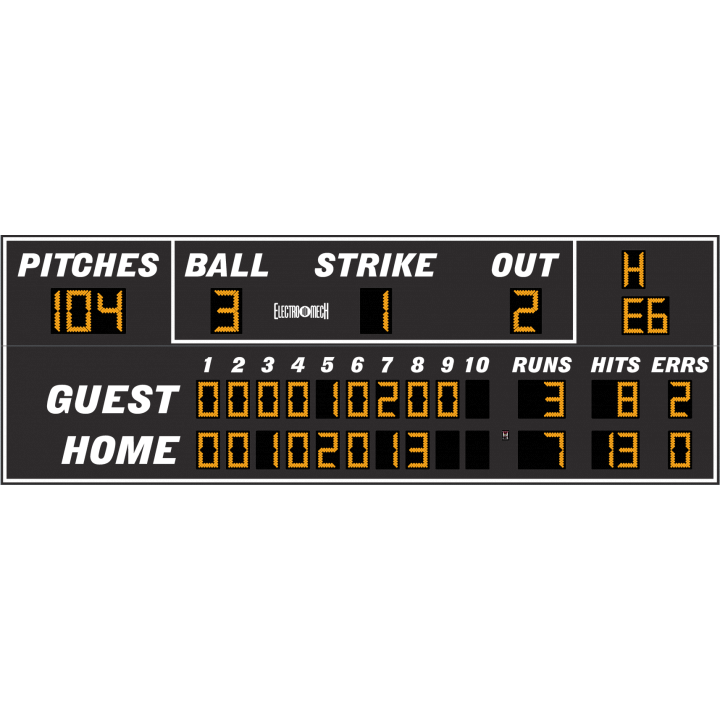

Electro-Mech LX175 Full Size Ten Inning Baseball Scoreboards
With six standard configurations to choose from, the LX175x series of line score displays has the bases covered. All versions include 15-inch tall LED digits that keep track of the Runs for each of ten Innings along with Total Runs, Total Hits, Total Errors, and the Position of the Fielder who commits an Error. Ball, Strike, and Out Counts are displayed with 18-inch tall digits. The LX1756 version ships with a radar gun and can show the Speed of the Pitch up to 199 MPH. The other models in this series offer various Timer styles, Pitch Count, and Batter Number displays.
•
Dimensions: 26 ft x 9 ft
•
Weight: 800 lb
•
Digit Height: 18 in, 15 in
•
Electrical: 120 VAC, 5.3 amps
Standard Equipment & Features
•
Single cabinet design with heavy-duty extruded aluminum framing
•
Lightweight, rust free, all-aluminum construction
•
Mounting hardware for permanent installation on posts without the need for on site fabrication
•
Automotive-grade baked on enamel based paint applied to the scoreboard face
•
Choice of 18 standard paint colors
•
Choice of amber or red LED displays
•
LED display circuit boards conformally coated for outdoor use
•
Full-sized 37-key control console with LCD display
•
Fifty programmable brightness levels
•
Junction box and patch cable for hardwired installations
•
Five-year limited warranty
•
Toll-free technical support via phone and online for the life of the product
LX1750 Cutsheet Download
LX1751 Cutsheet Download
LX1752 Cutsheet Download
LX1753 Cutsheet Download
LX1754 Cutsheet Download
LX1756 Cutsheet Download
