Electro-Mech LX174 Ten Inning Baseball Scoreboards

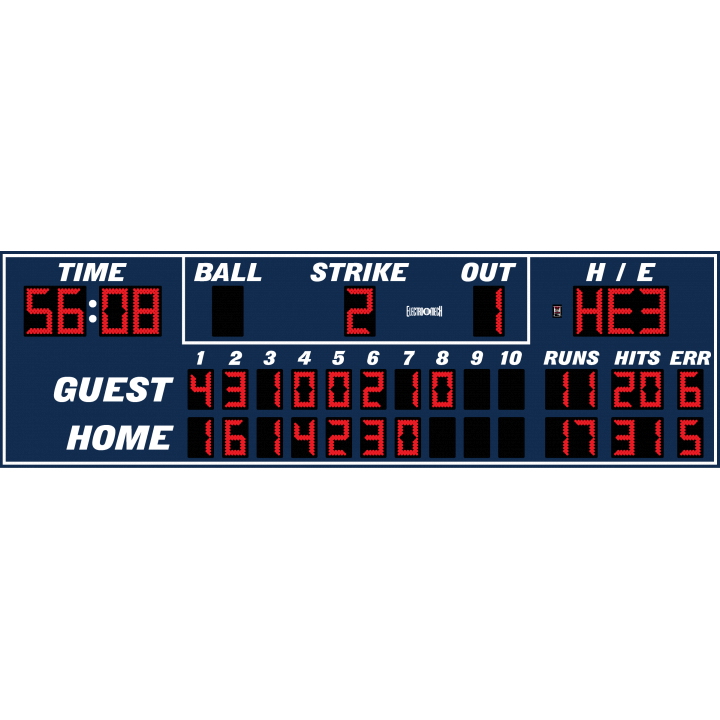

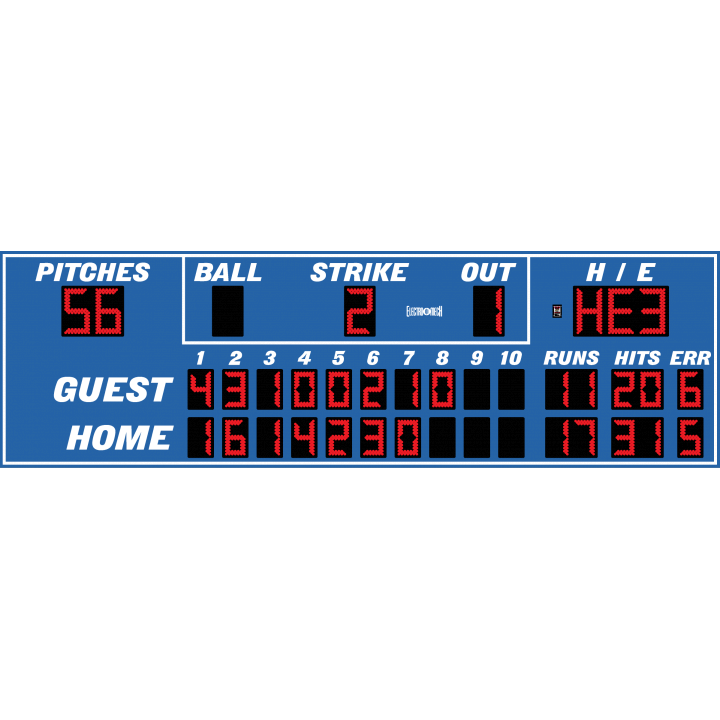

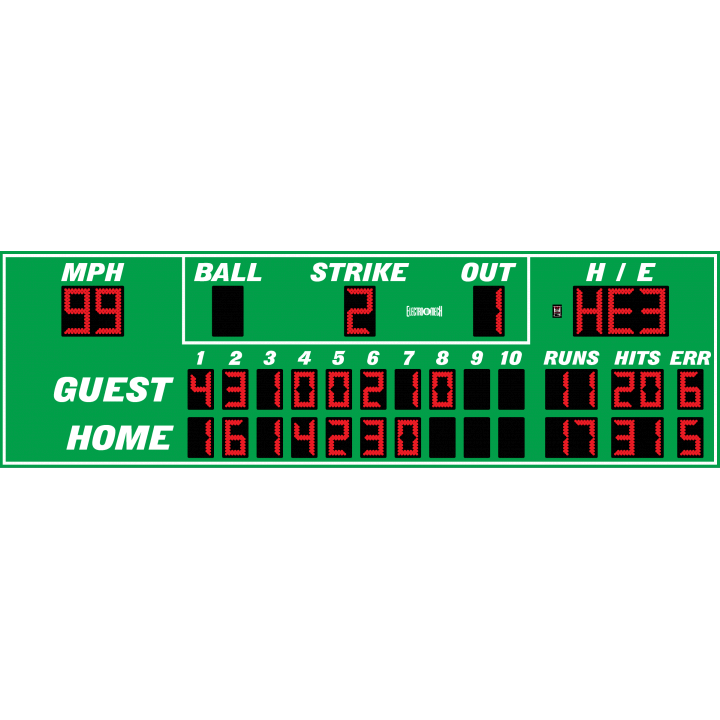

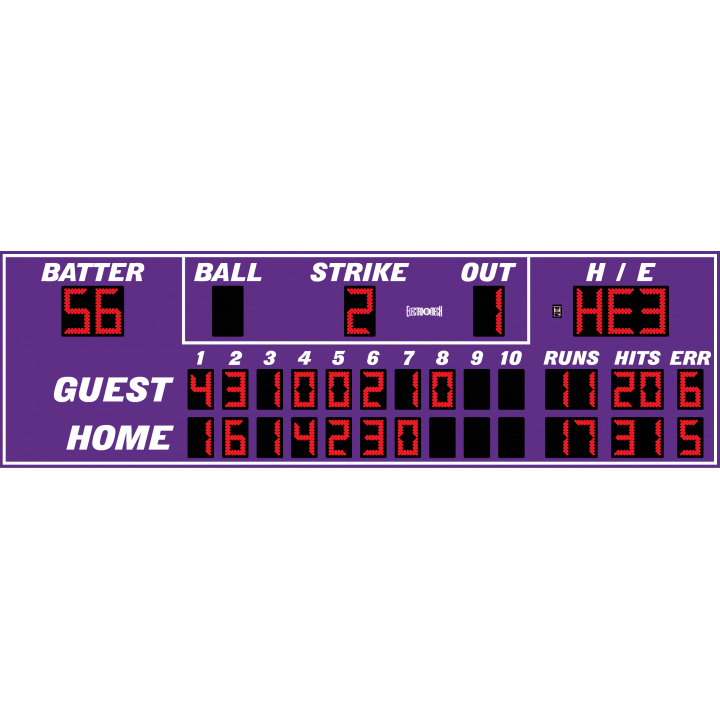

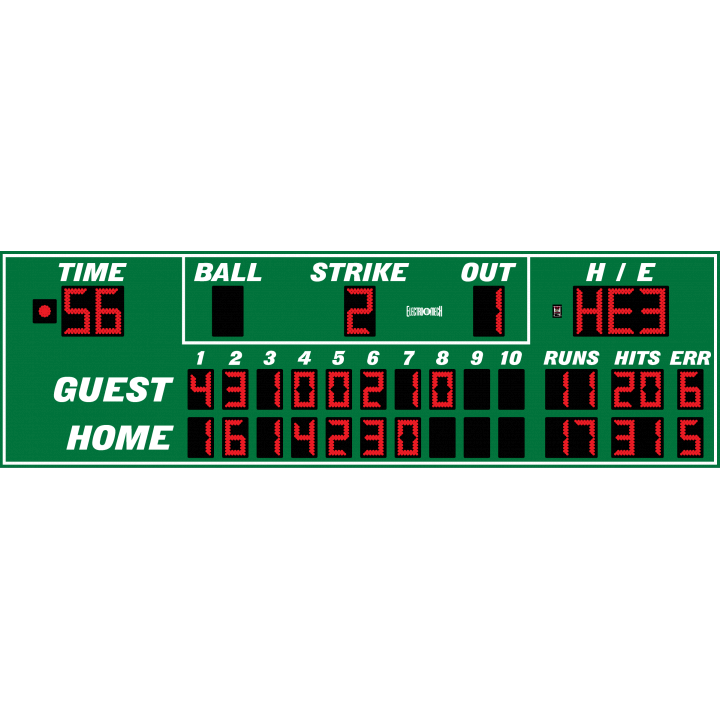

This "little brother" of the LX1780 and LX1750 scoreboards includes a scaled down version of every feature available in the larger models. 11-inch tall LED digits form the numbers that give you Runs by Inning for a full ten Innings, along with Totals for Runs, Hits, and Errors. In addition, you get 15-inch tall digits for Ball, Strike, and Out counts, along with flashing "H" and "E" characters for Hits and Errors, and even the Position of the Fielder committing an Error. Like its larger siblings, this series of scoreboards offers six configurations that allow you to choose a Batter Number display, Pitch Count, Pitch Speed, or a Timer.
•
Dimensions: 20 ft x 6 ft
•
Weight: 350 lb
•
Digit Height: 15 in, 11 in
•
Electrical: 120 VAC, 3.5 amps
Standard Equipment & Features • Single cabinet design with heavy duty extruded aluminum framing • Light weight, rust free, all aluminum construction • Mounting hardware for permanent installation on posts without the need for on site fabrication • Automotive grade baked on enamel based paint applied to the scoreboard face • Choice of 18 standard paint colors • Choice of amber or red LED displays • LED display circuit boards conformal coated for outdoor use • Full-sized 37-key control console with LCD display • Fifty programmable brightness levels • Junction box and patch cable for hardwired installations • Five-year limited warranty • Toll free technical support via phone and online for the life of the product
Model LX1740 Cutsheet - Download
