Electro-Mech LX171 Compact Nine Inning Baseball Scoreboards In a single, easy to install, 5-foot tall cabinet, you get Runs by Inning for a full nine...
Couldn't load pickup availability
Secure checkout with
Electro-Mech LX171 Compact Nine Inning Baseball Scoreboards

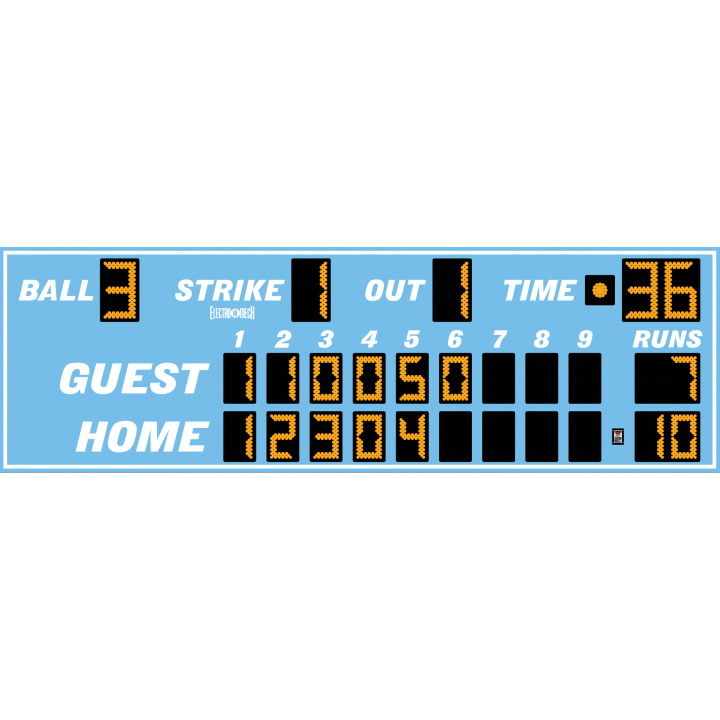

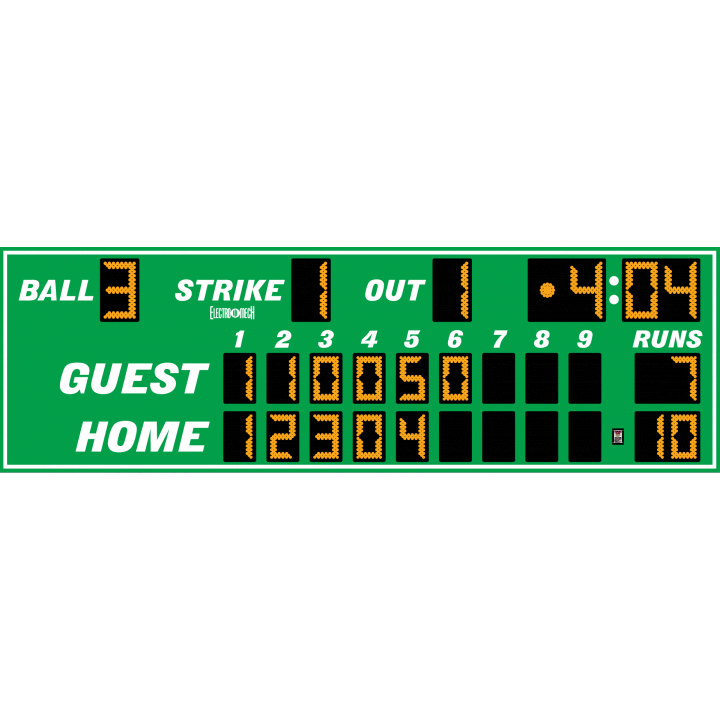

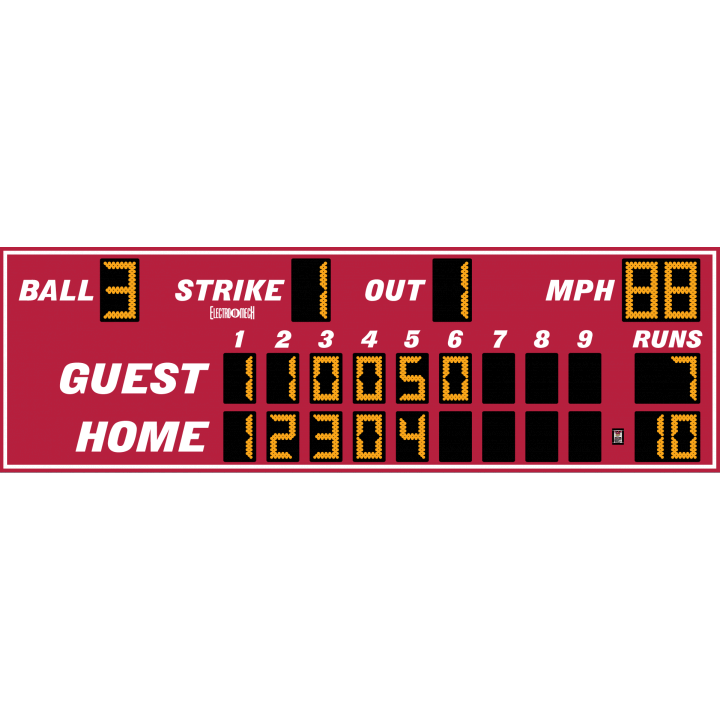

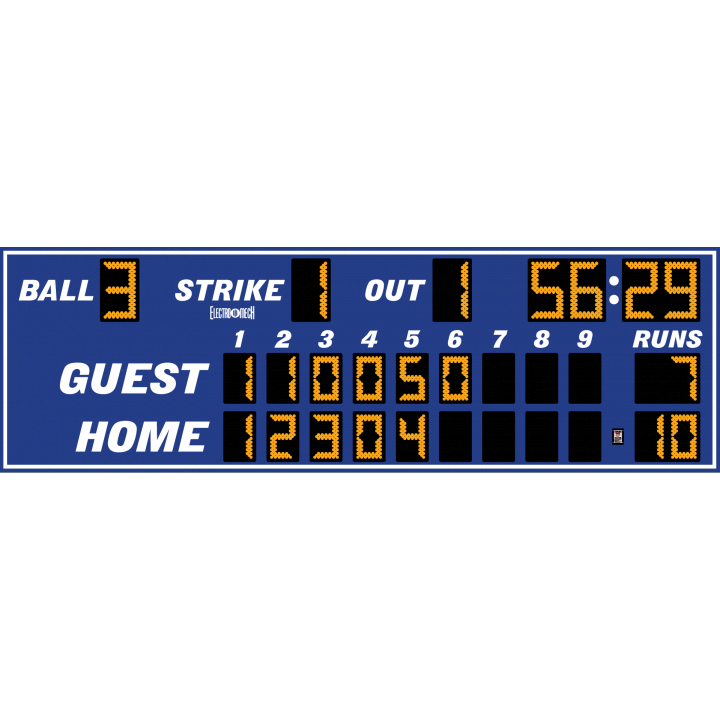

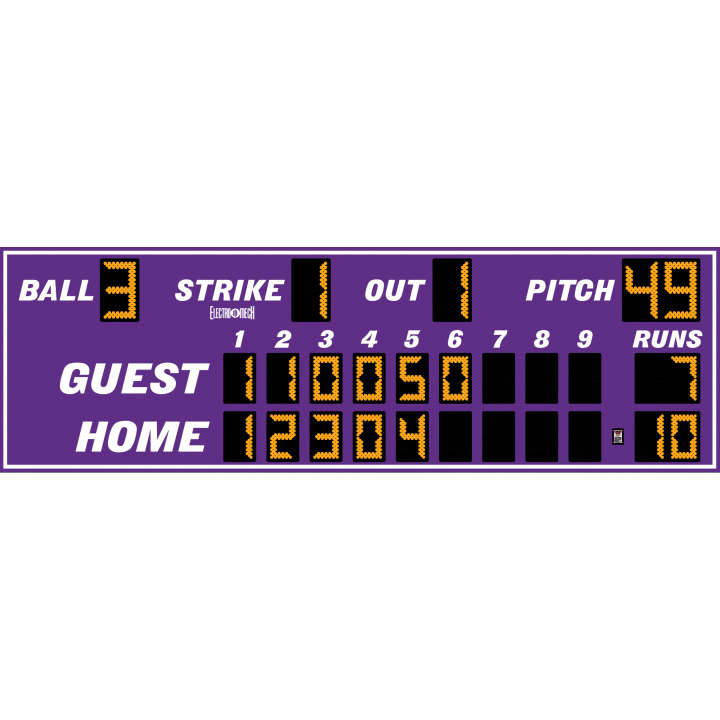

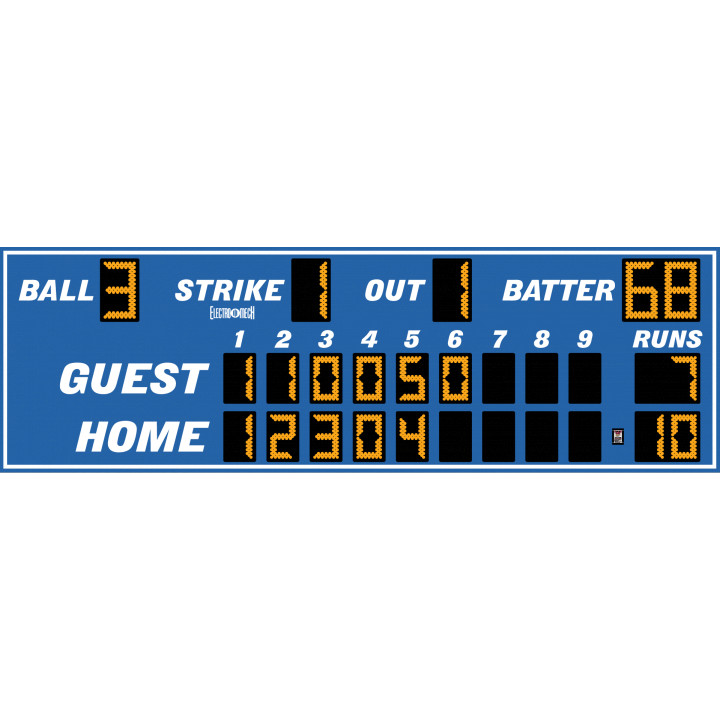

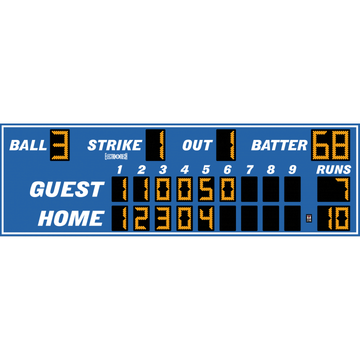

In a single, easy to install, 5-foot tall cabinet, you get Runs by Inning for a full nine innings of baseball. All of the entries in this scoreboard series include Total Runs and counts for Ball, Strike, and Outs. Model LX1716 includes a radar gun kit and a Speed of Pitch display. Model LX1717 gives you indicators for Hit and Error along with Error Fielder Position. Model LX1713 allows you to track Pitches for both teams. Other variations offer Batter Numbers and three different Timer styles. Electronic Team Names are available as an upgrade.
•
Dimensions: 16 ft x 5 ft
•
Weight: 300 lb
•
Digit Height: 15 in, 11 in
•
Electrical: 120 VAC, 2.6 amps
Standard Equipment & Features
•
Single cabinet design with heavy-duty extruded aluminum framing
•
Lightweight, rust free, all-aluminum construction
•
Mounting hardware for permanent installation on posts without the need for on site fabrication
•
Automotive-grade baked on enamel based paint applied to the scoreboard face
•
Choice of 18 standard paint colors
•
Choice of amber or red LED displays
•
LED display circuit boards conformally coated for outdoor use
•
Full-sized 37-key control console with LCD display
•
Fifty programmable brightness levels
•
Junction box and patch cable for hardwired installations
•
Five-year limited warranty
•
Toll-free technical support via phone and online for the life of the product
LX1710 Cutsheet Download
LX1711 Cutsheet Download
LX1712 Cutsheet Download
LX1713 Cutsheet Download
LX1714 Cutsheet Download
LX1716 Cutsheet Download
LX1717 Cutsheet Download
