Dugouts USA Northern Steel Dugout Frames

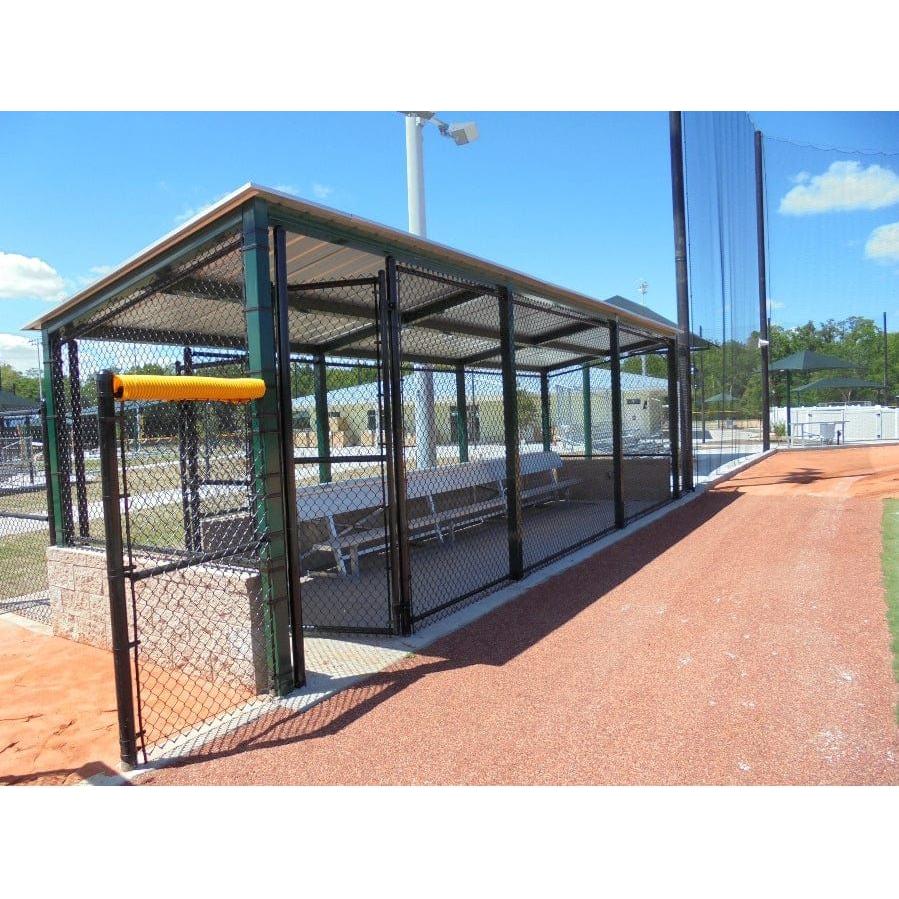

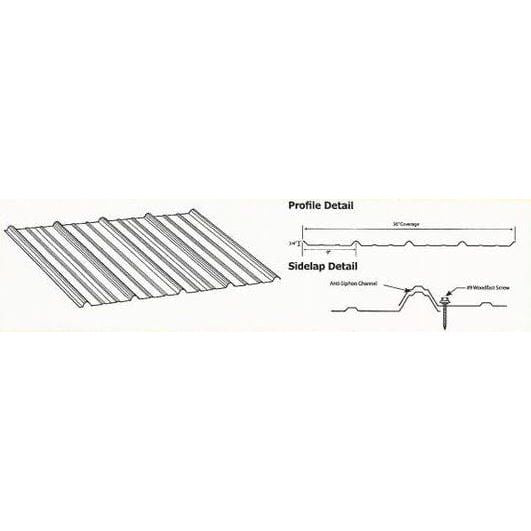

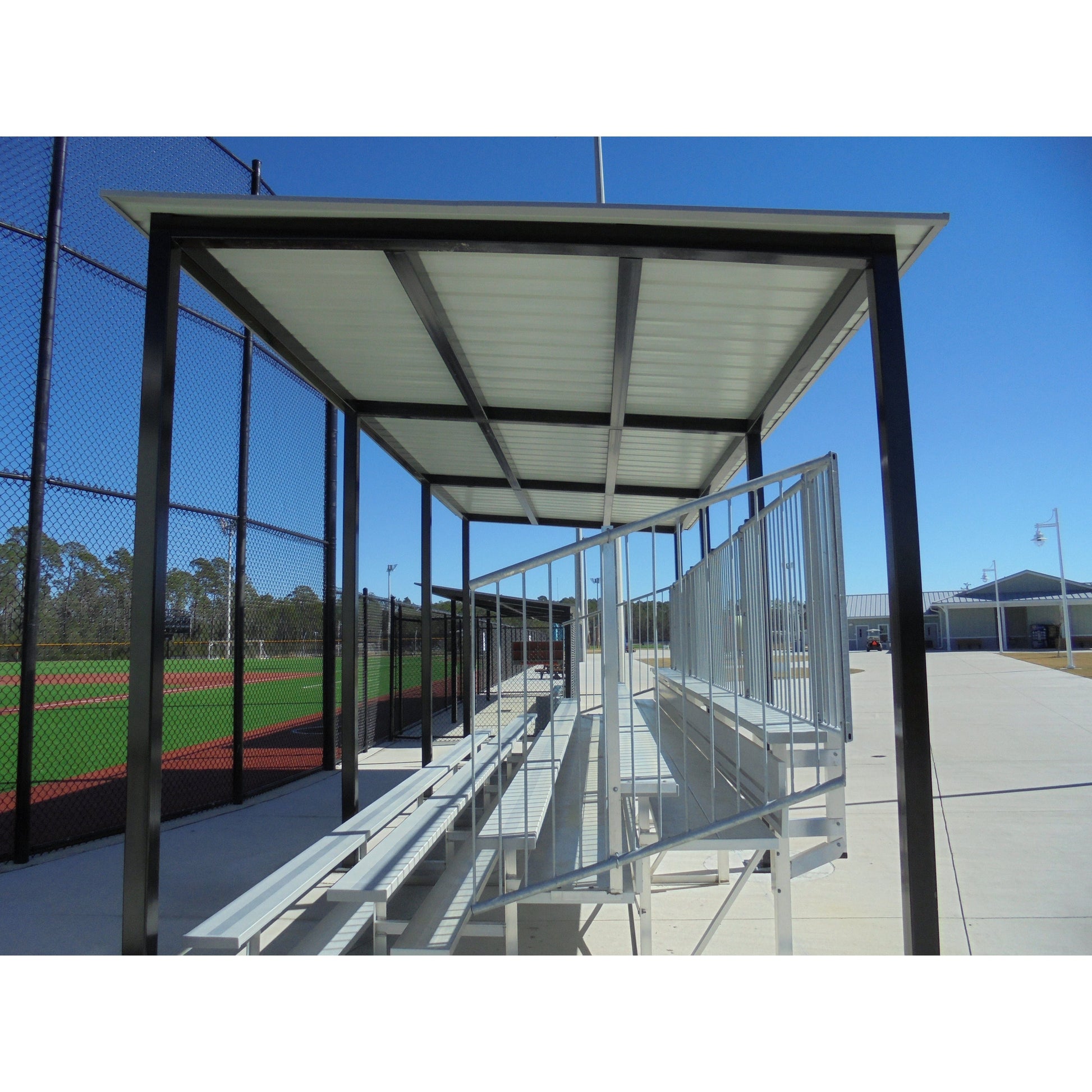

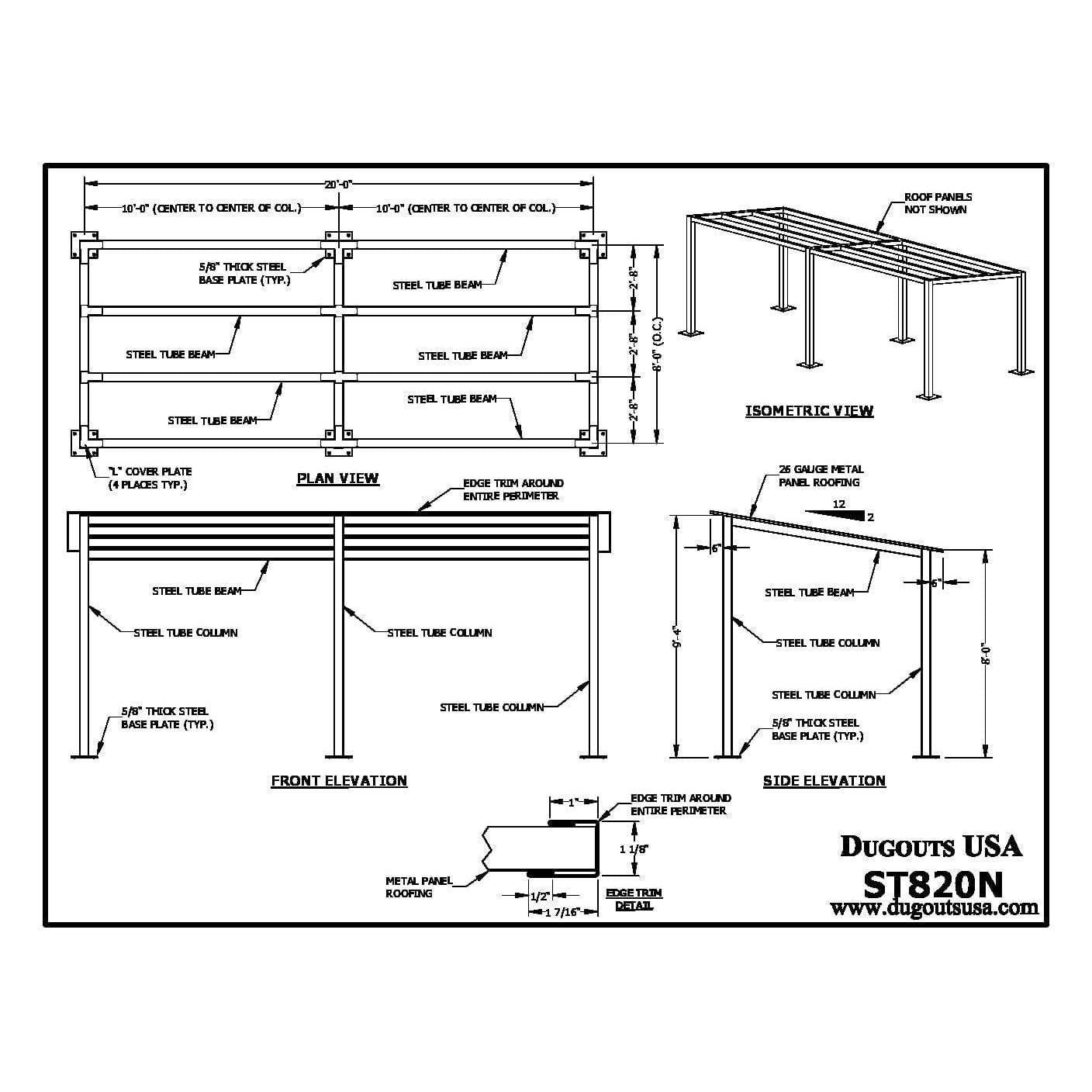

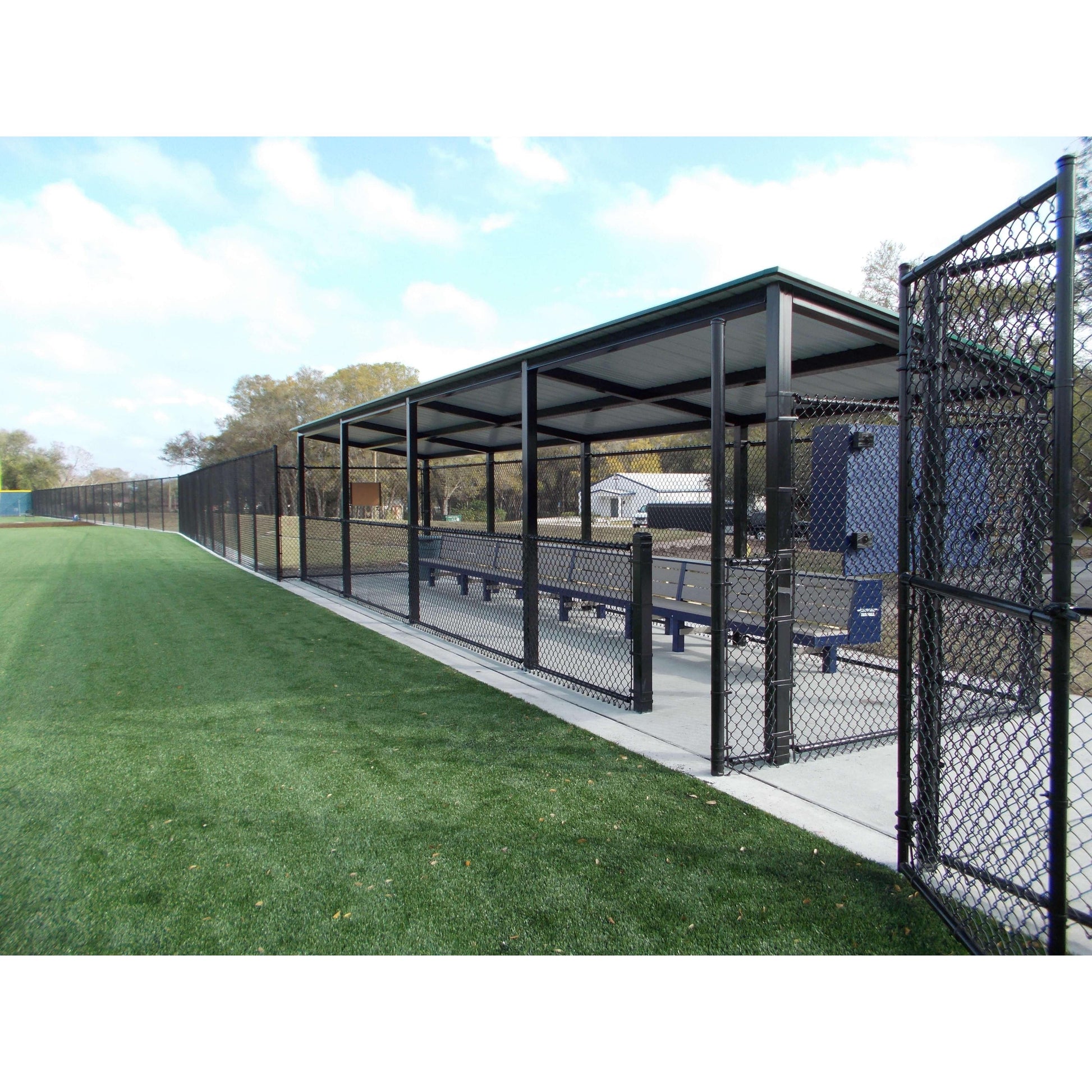

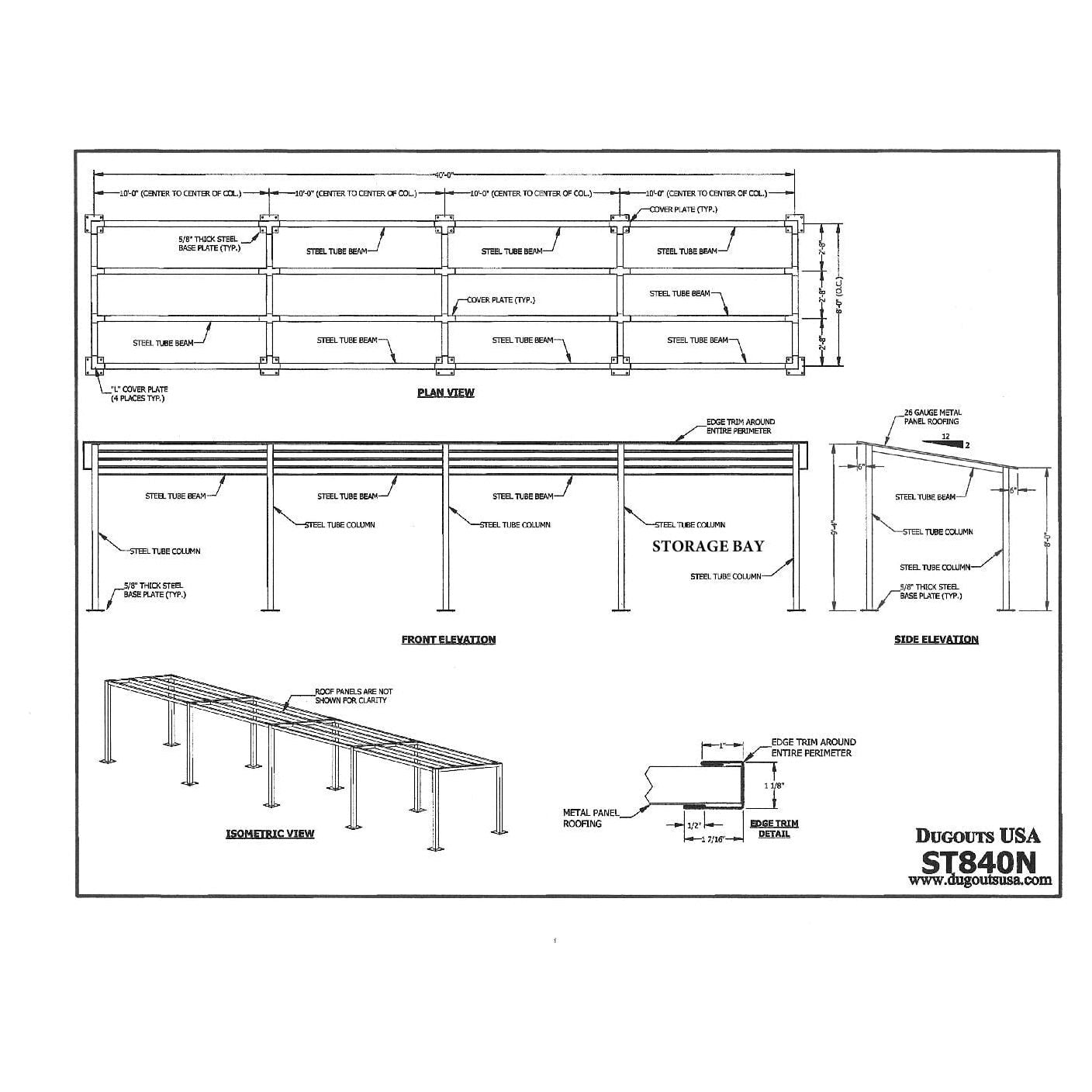

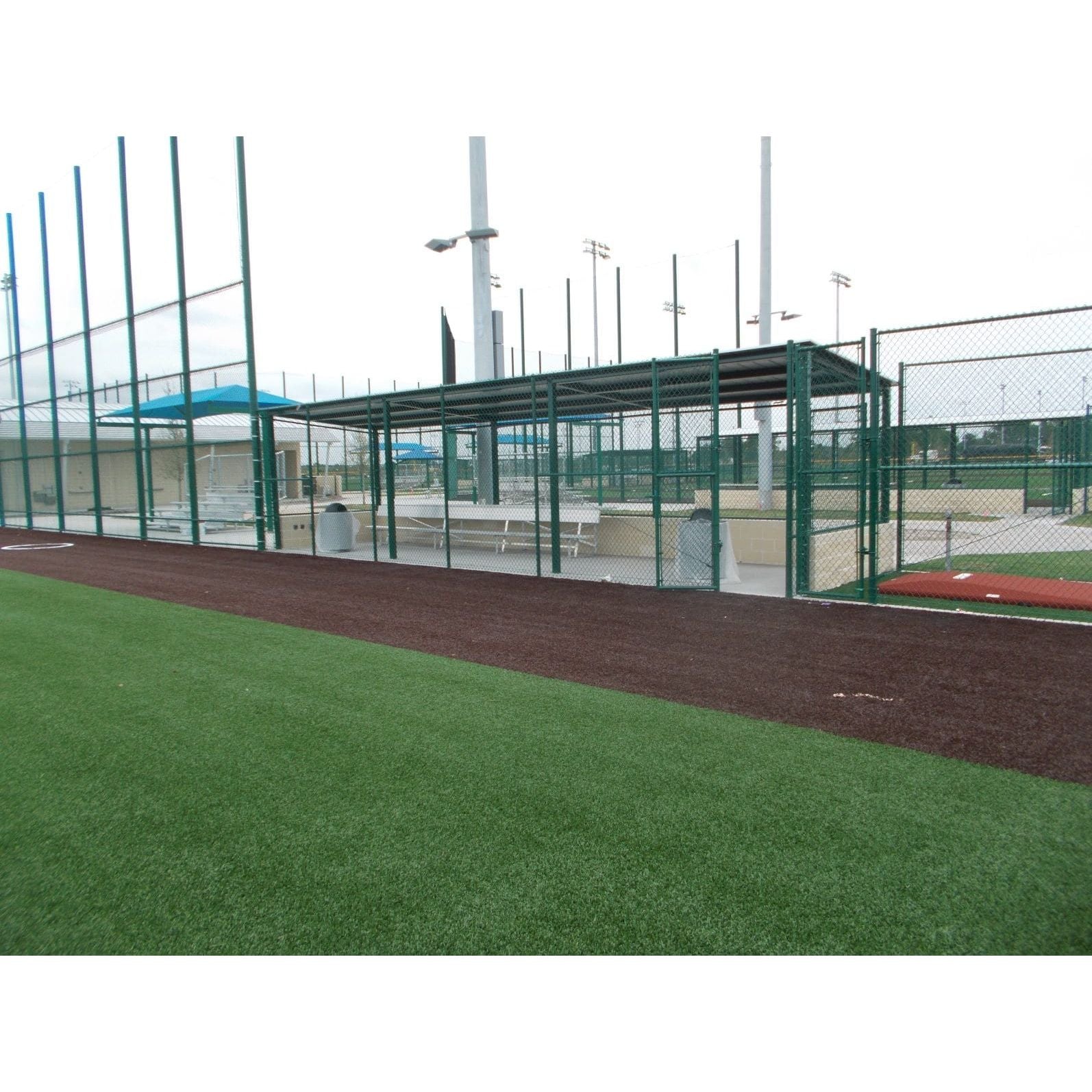

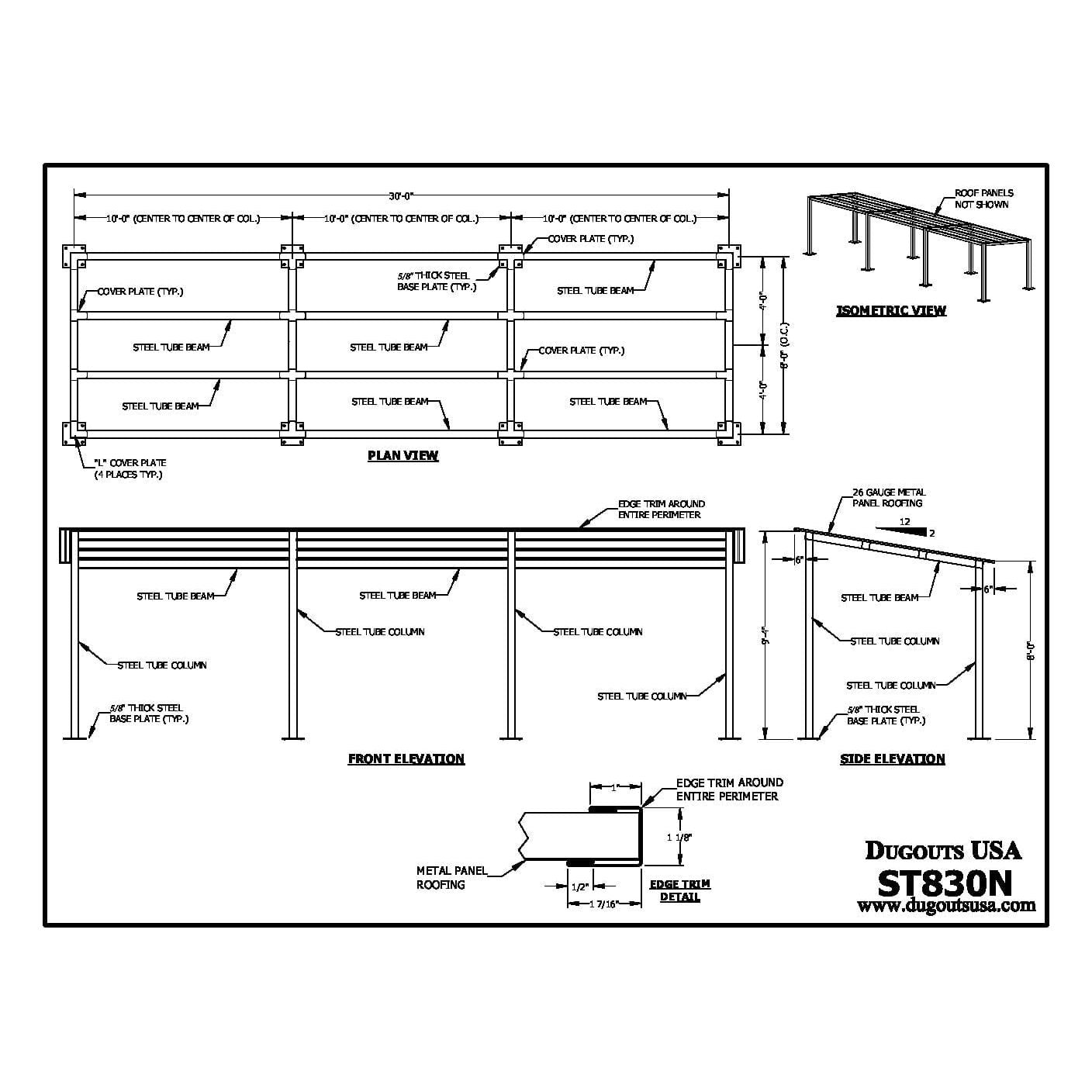

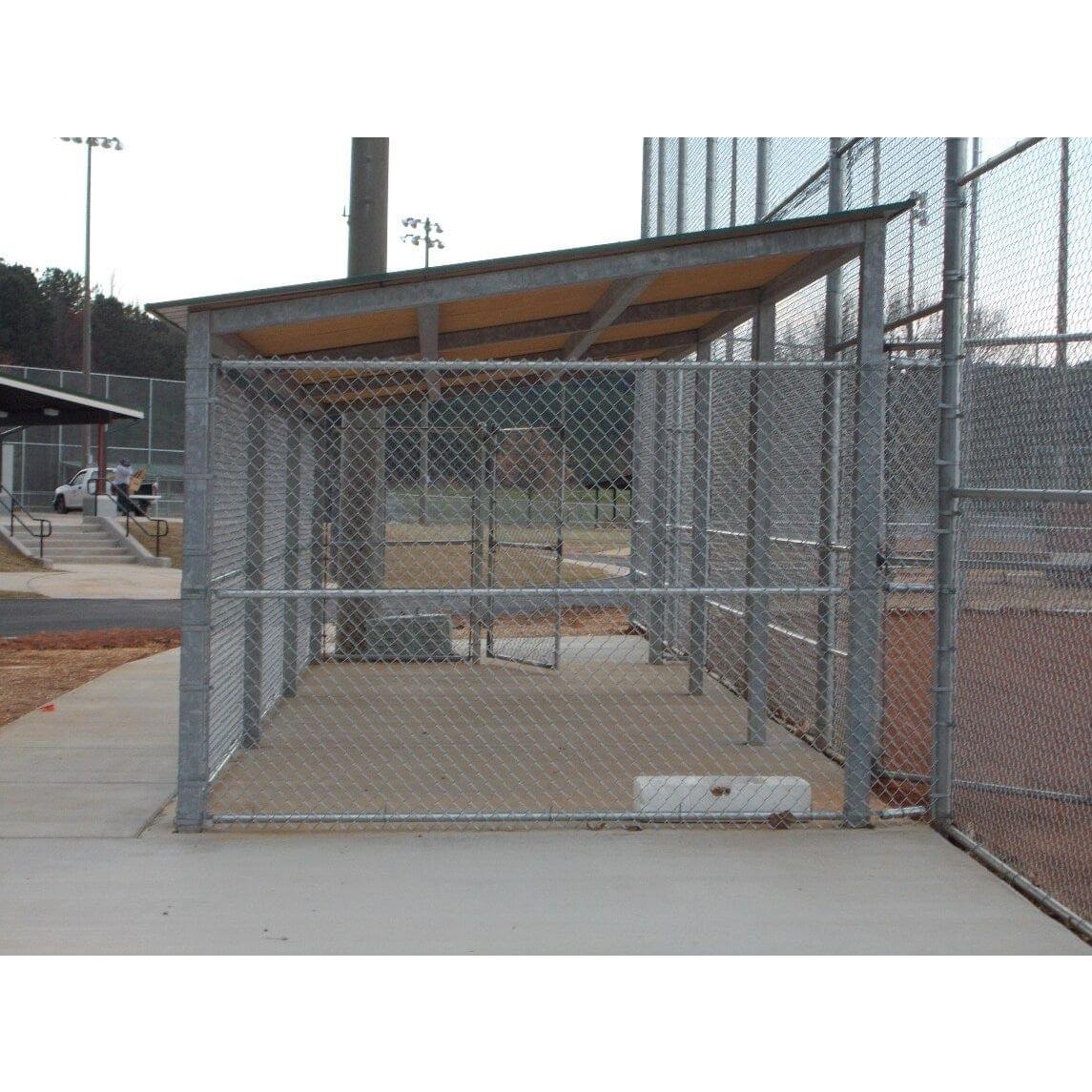

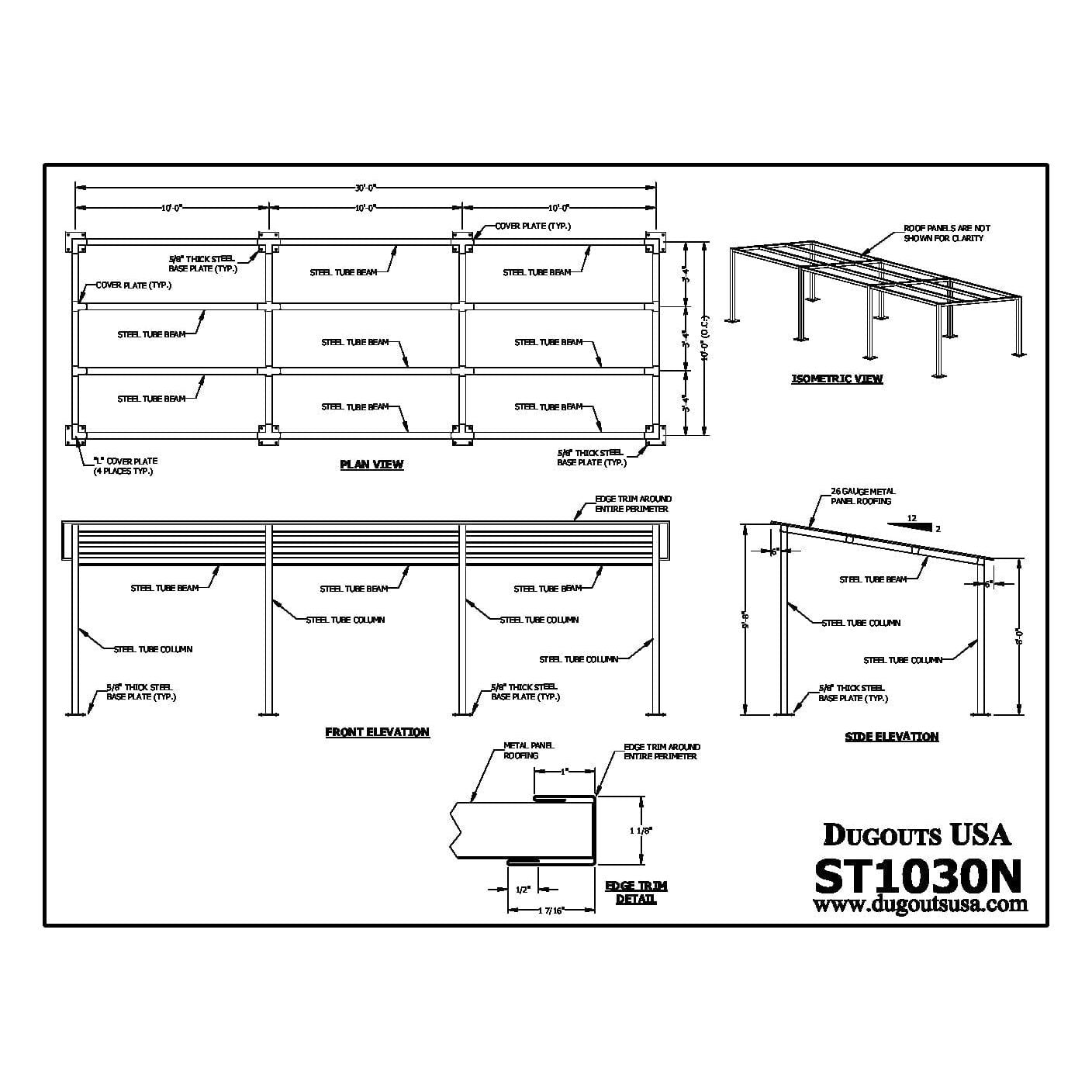

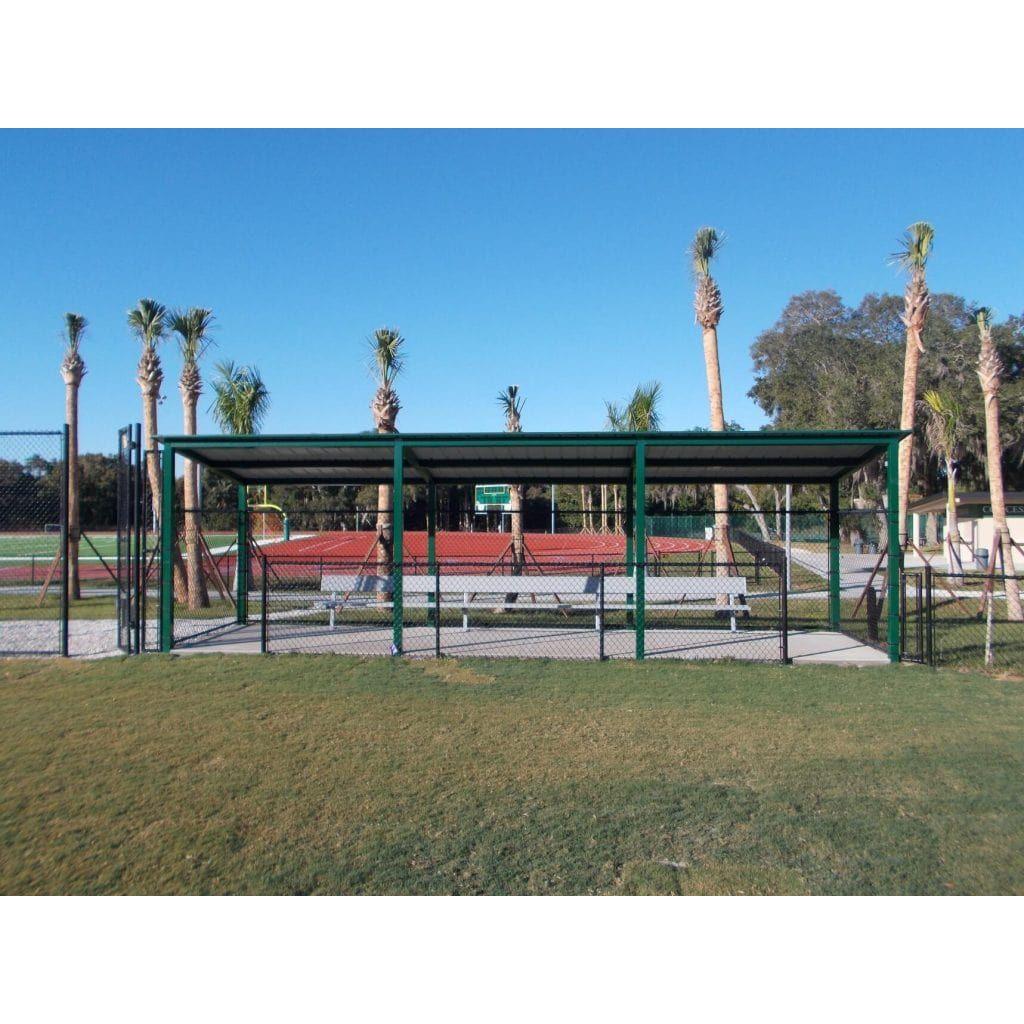

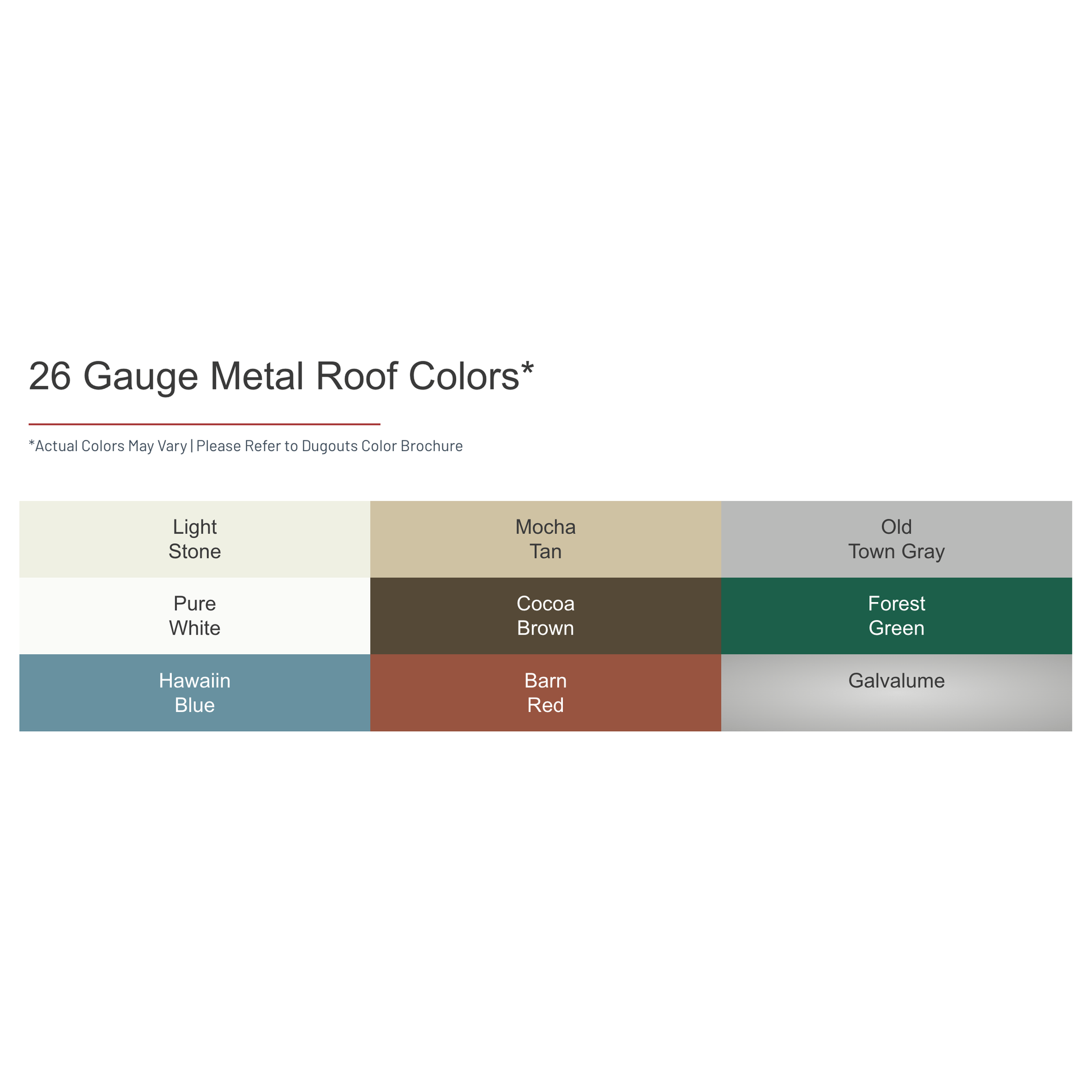

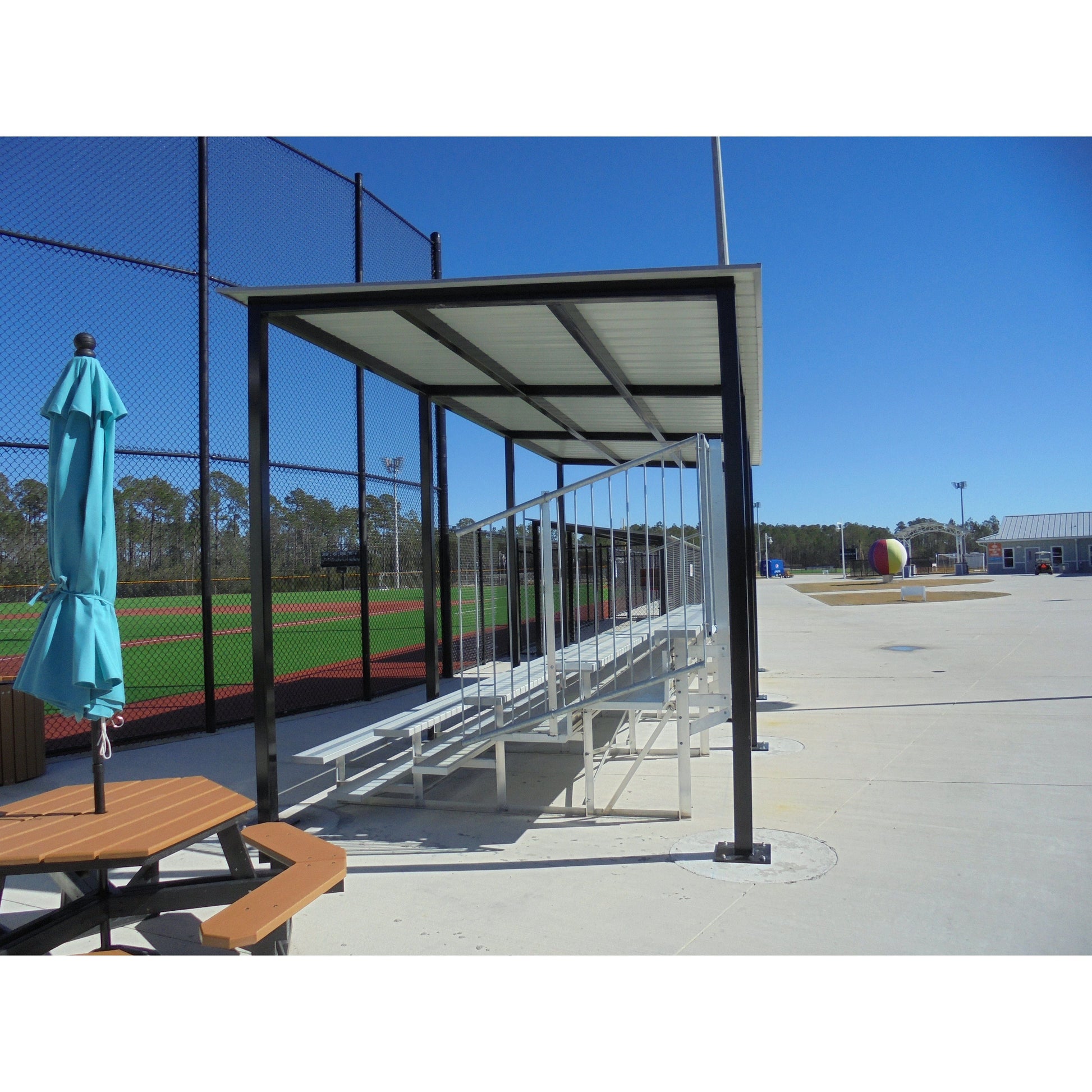

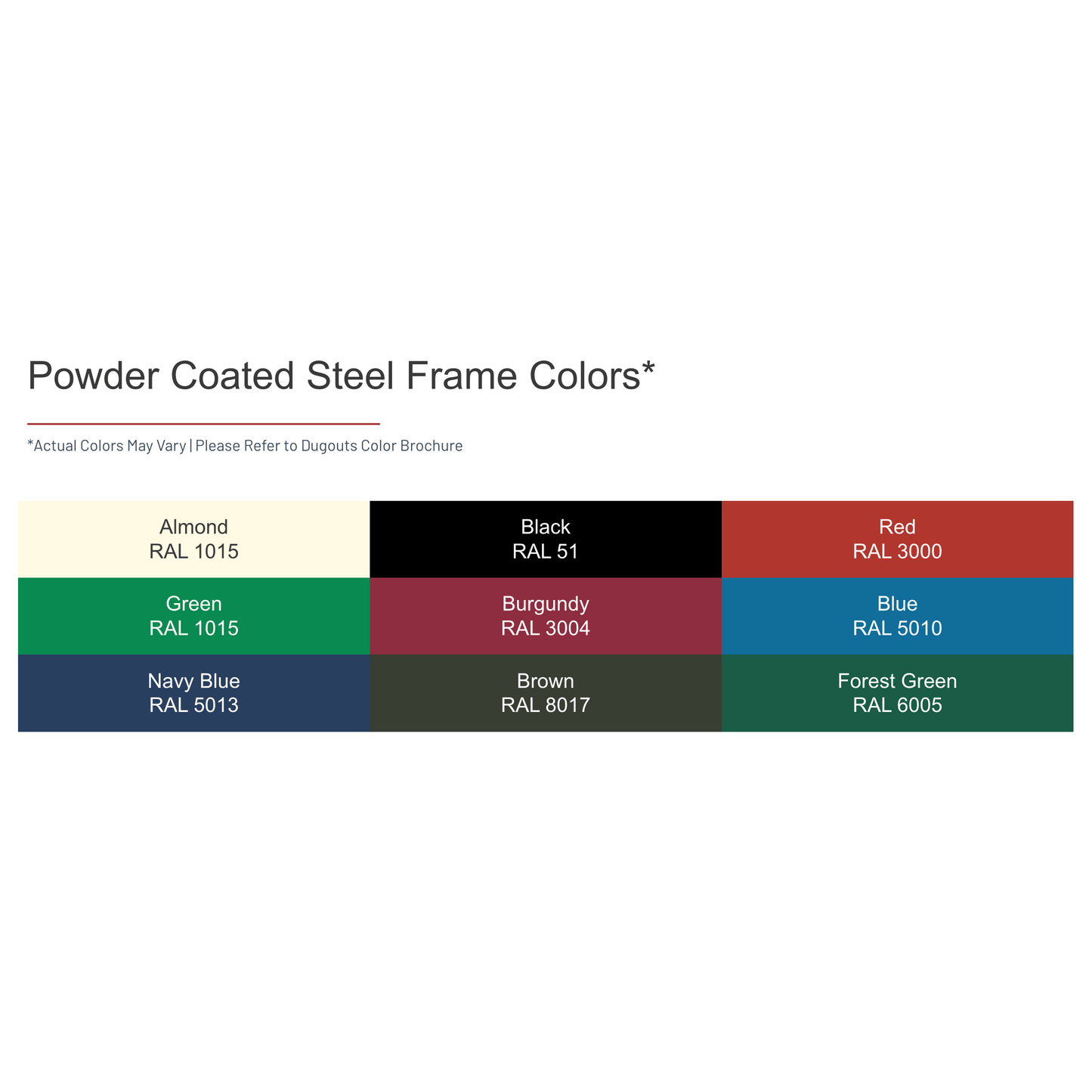

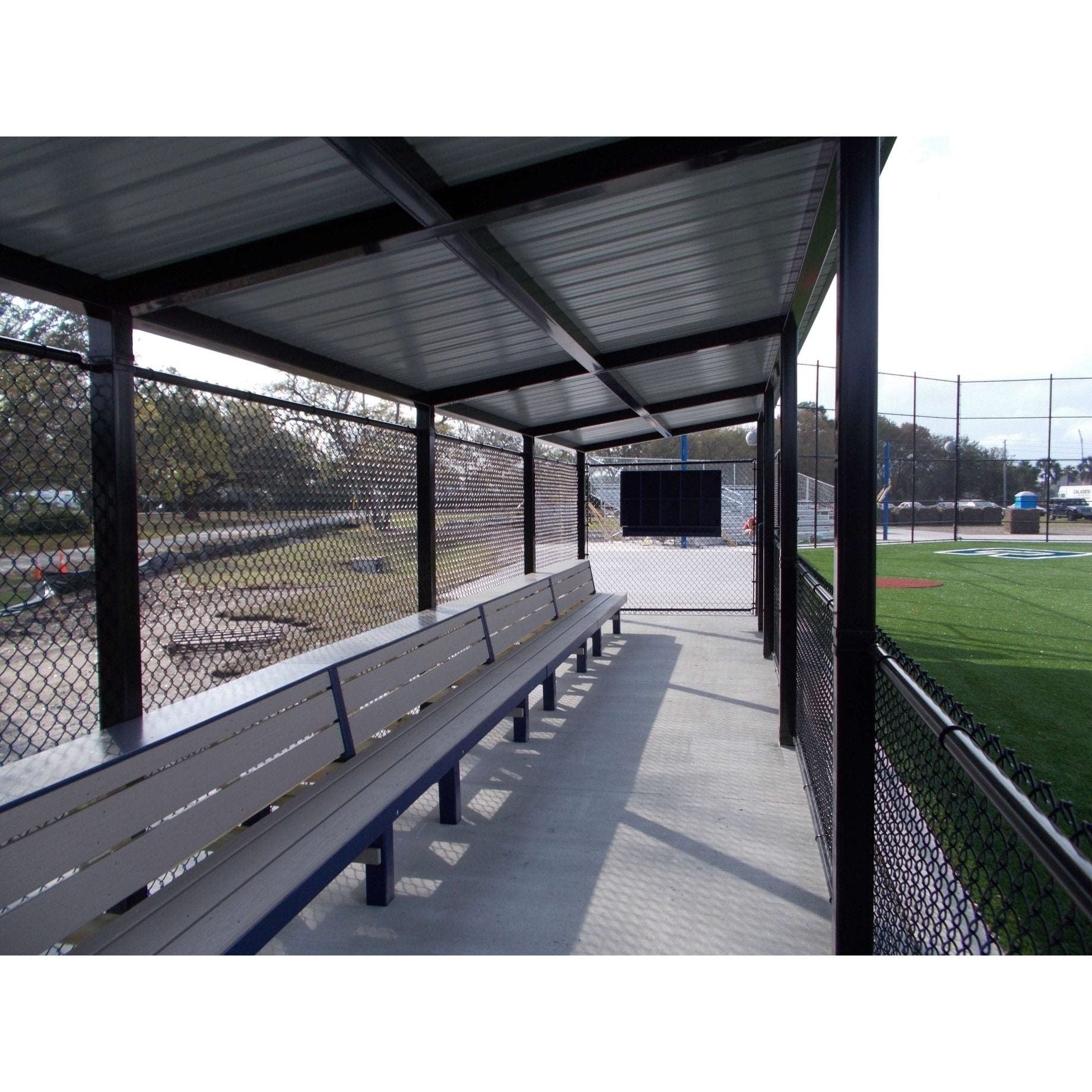

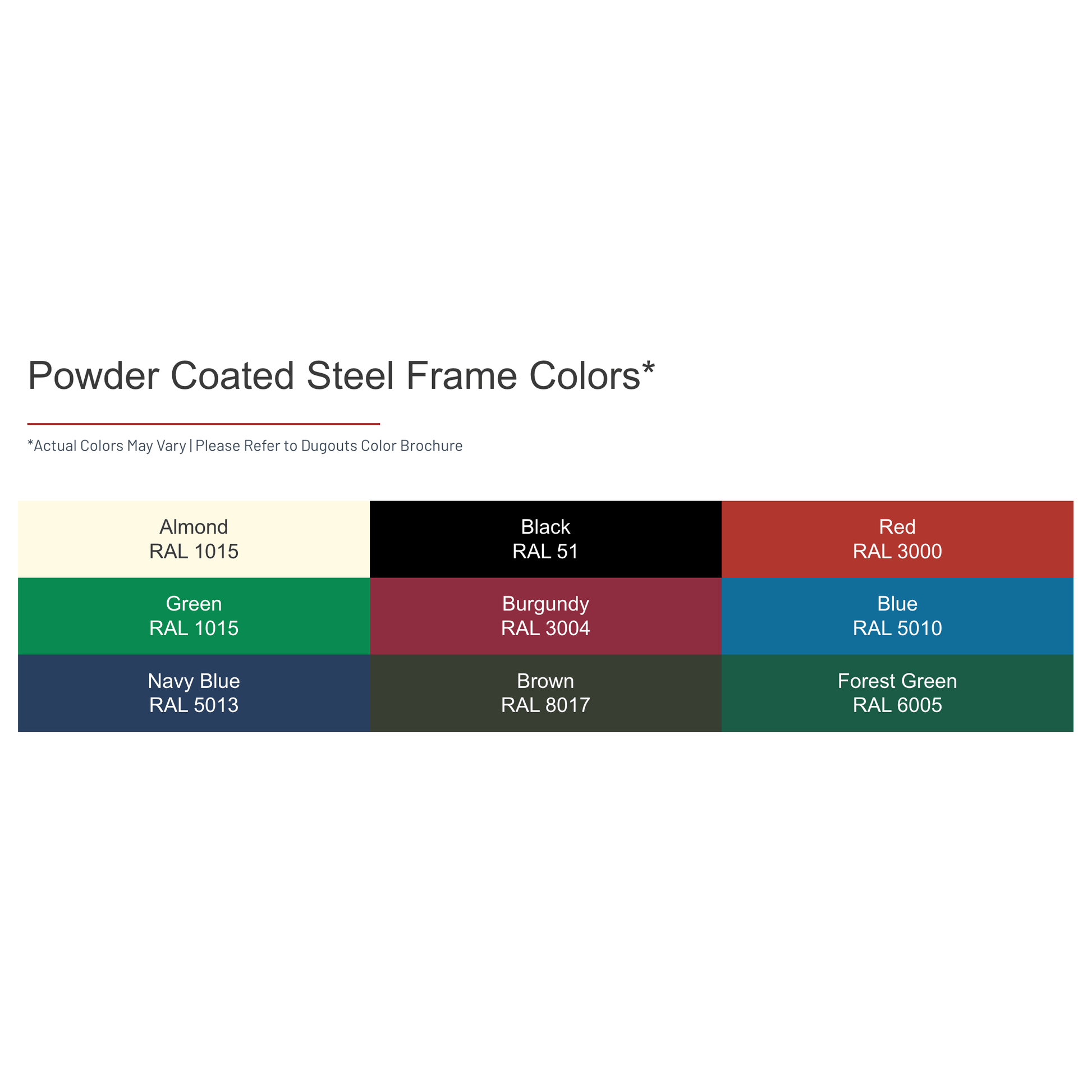

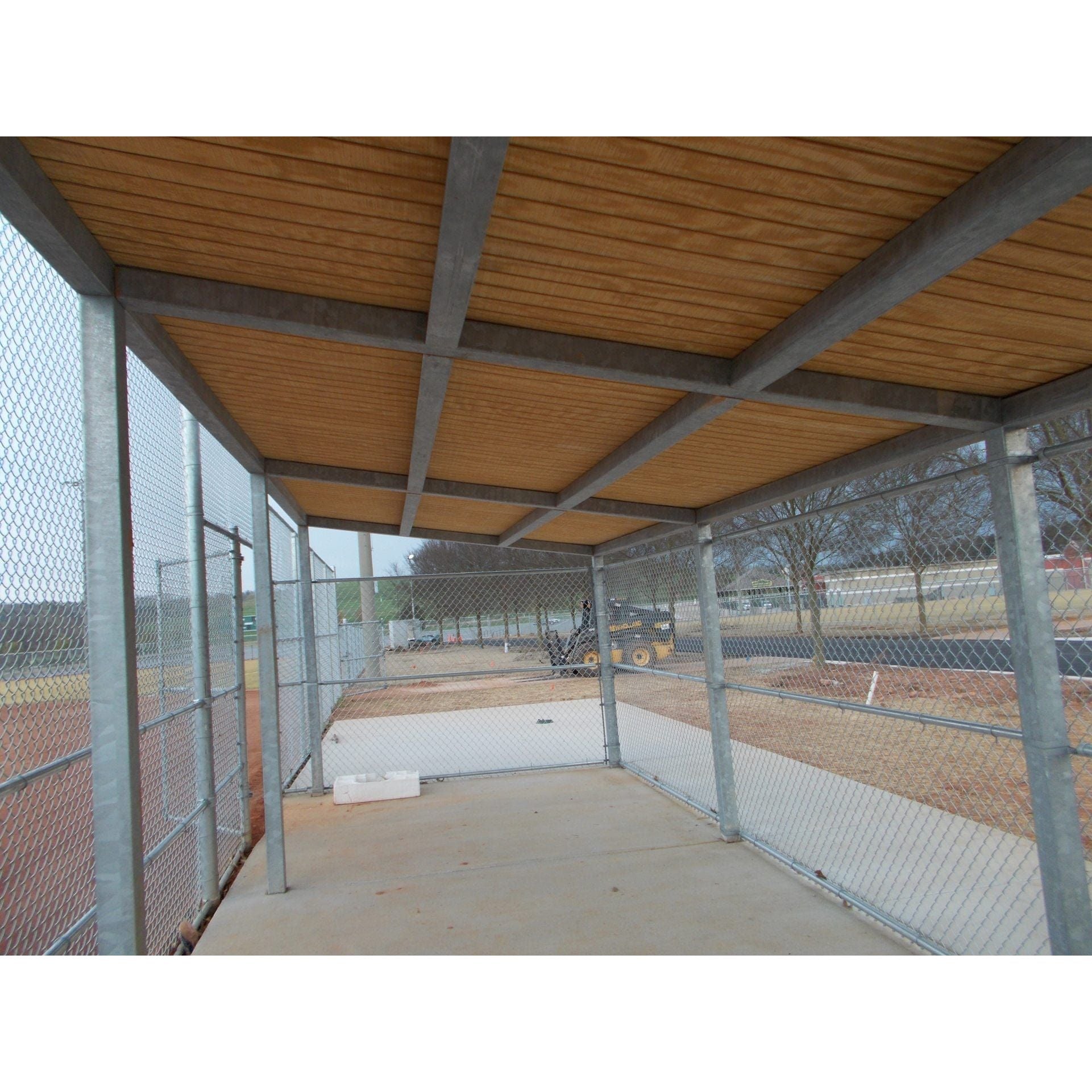

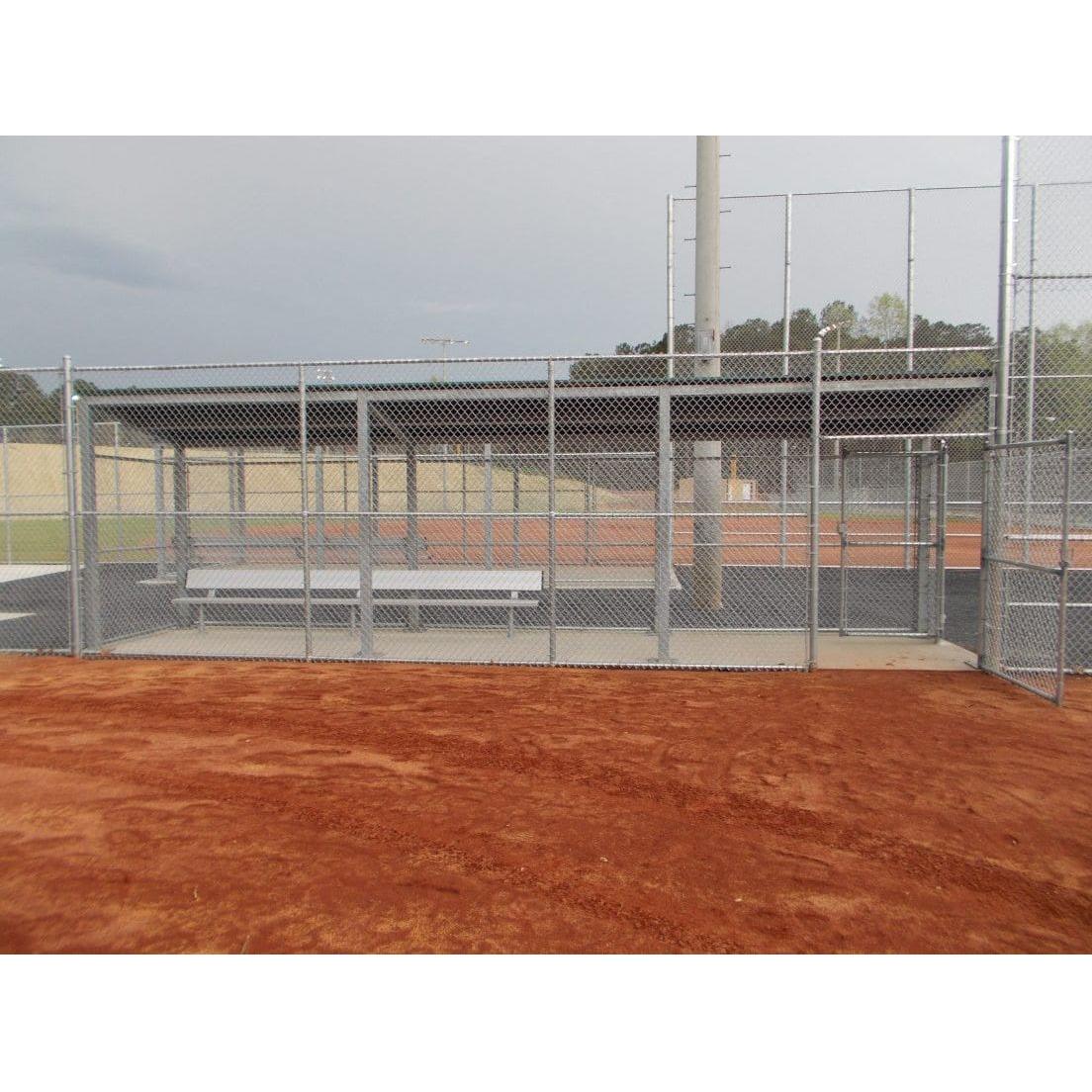

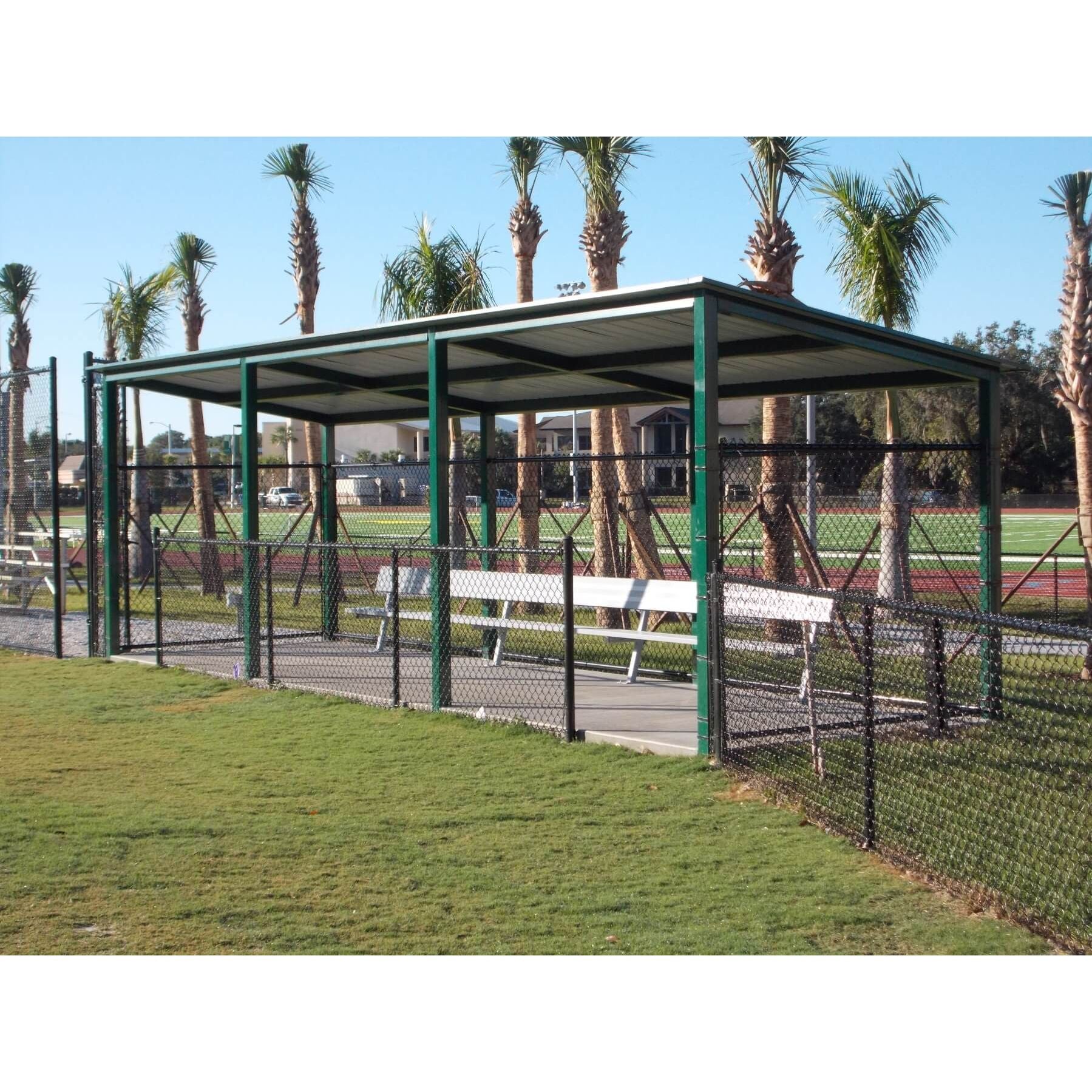

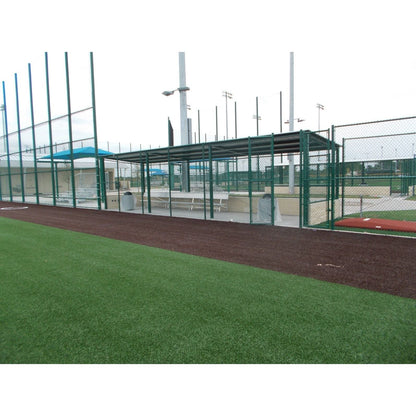

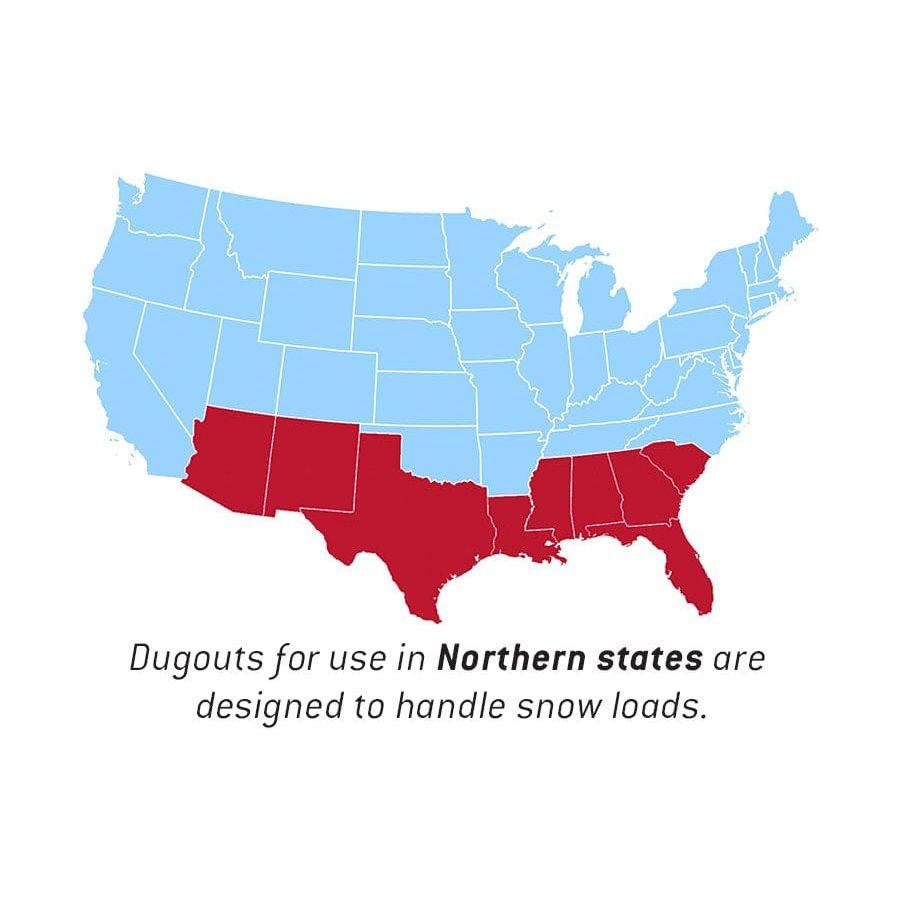

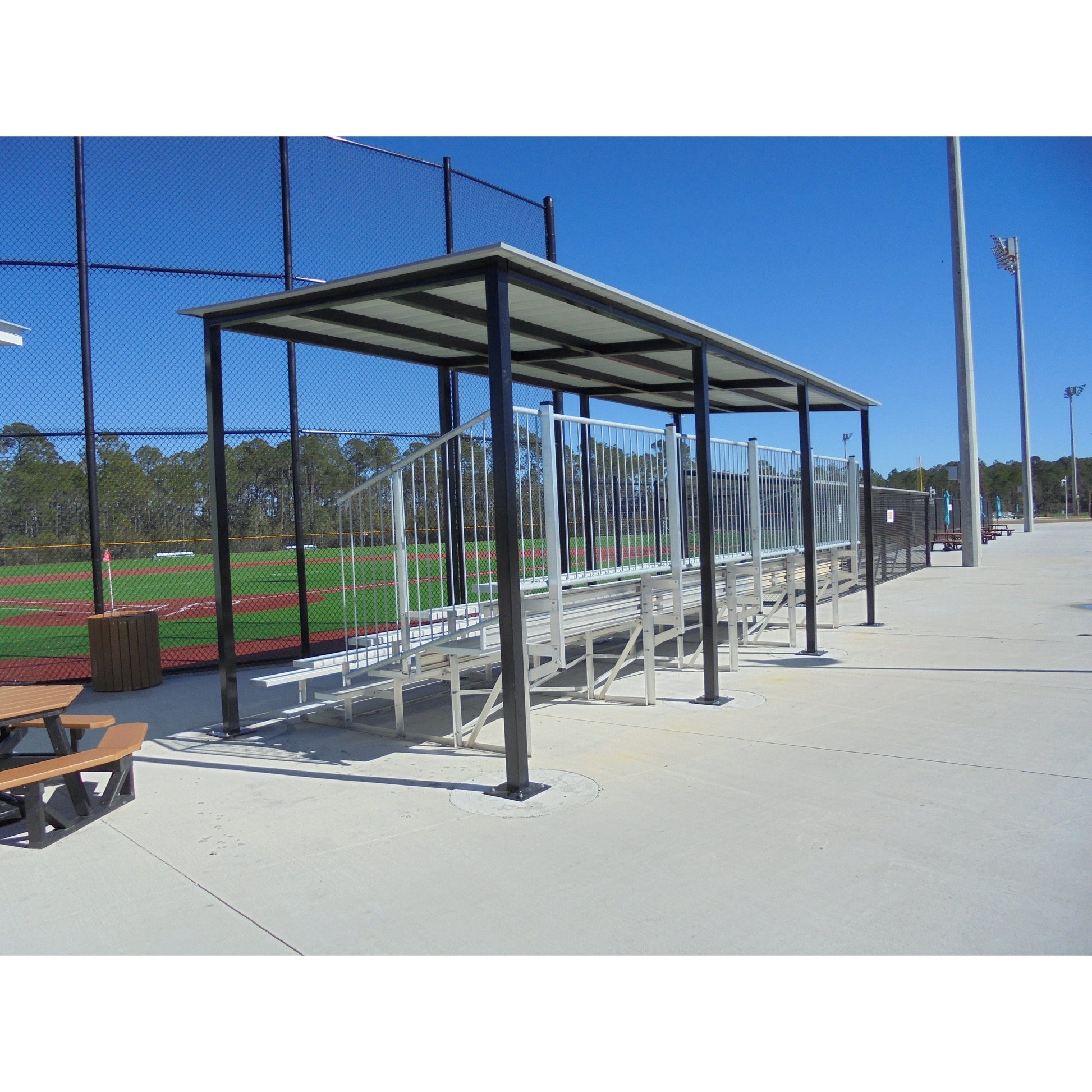

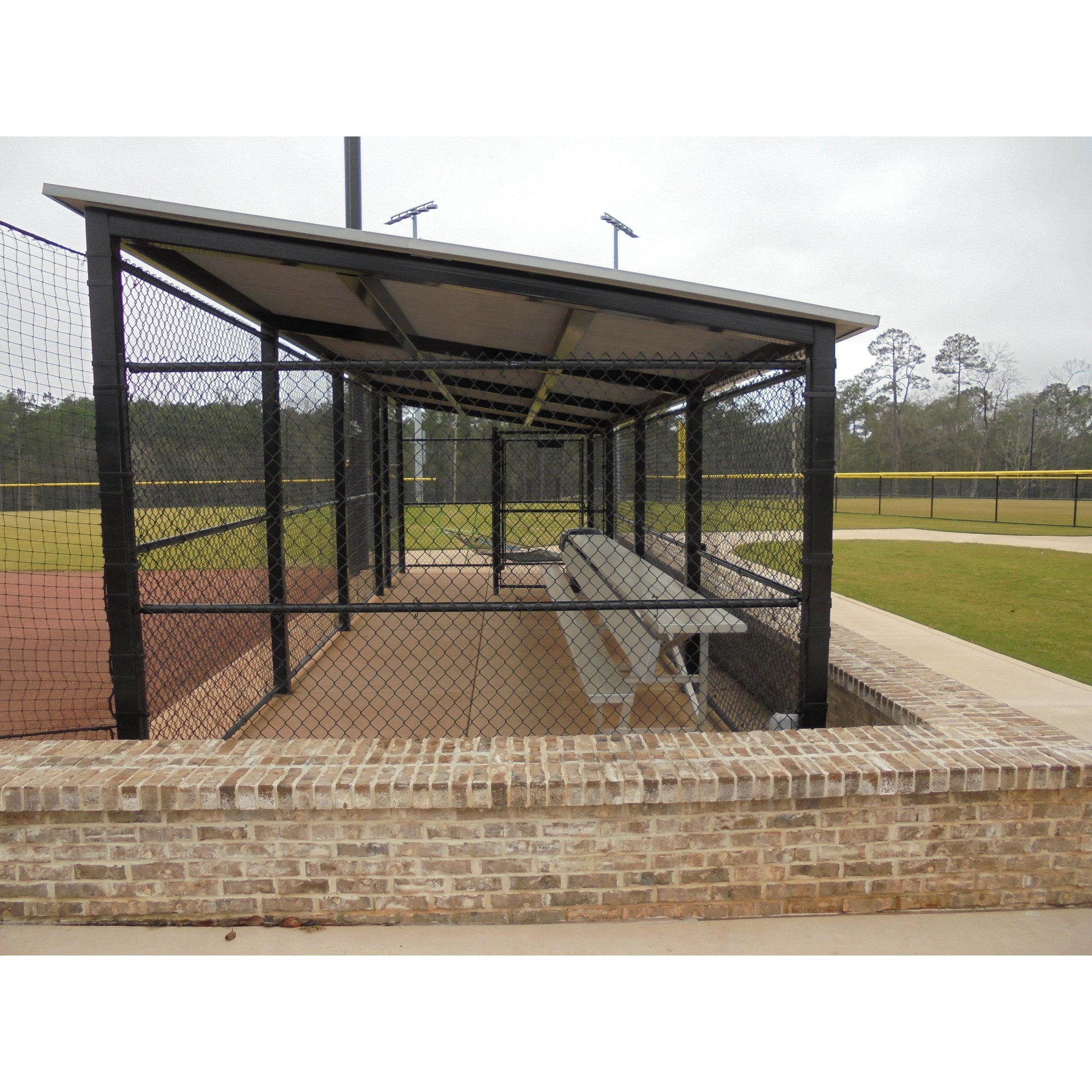

Dugouts USA Northern Steel Dugout Frames NOTE:  Northern dugouts are designed to handle snow loads. The Northern dugouts have an additional roof beam, which enables the dugout to provide a 55PSF Snow Load. Dugout Features • - All Steel Construction • - CUSTOM SIZES AVAILABLE • - AVAILABLE DUGOUT DEPTHS 5'-10' • - AVAILABLE ROOF PITCH 1-12 / 2-12 / 3-12 • - Concealed Frame Fasteners • - Custom Dugout Sizes Available • - Fast Installation with Limited Personnel • - 40 Year Warranty On Metal Roof Color Finish -No Fencing or Concrete Included • Both structures also provide a 170MPH Wind SPEED. Steel Dugout Frame • Support columns shall be fabricated of A500 square structural steel tubing with an electrically welded 5/8″ thick A36 steel base plate. • Beams shall be fabricated of A500 square structural steel tubing. • Steel frame members shall be blasted to near white metal, cleaned with an 8-Stage pre-treatment system, and zinc rich primer coated prior to the finished powder coat process. Powder coat finish shall be TGIC electrostatically applied polyester powder. • Roofing shall be pre-cut 26 gauge Multi-Rib metal panels. • Fasteners shall be 1″ diameter grade 5 bolts with flat washers and locknuts. Bolts meet ASME B 18.2.1 with a minimum tensile strength of 120,000  psi. All fasteners shall be concealed inside the tubing. • Anchors shall be 1/2″ diameter x 8 1/2″ zinc plated concrete wedge anchors. Multi-Rib Metal Panel • Panel Profile: 3/4″ height rib 36″ coverage width *Panel Style: Sidelap seam or exposed fastener • Gauge: 26 Gauge • Substrate: Grade 80 Galvanized steel sheet (G60), conforming to ASTM A446 for painted panels • Texture: Smooth • Finish: Ceram-A-Star 1050 high performance silicone-modified polyester • Color: Selected from manufacturers standard line Warranty - Dugouts shall be guaranteed against defects in workmanship or materials for a period of one year from date of invoice by the manufacturer.
